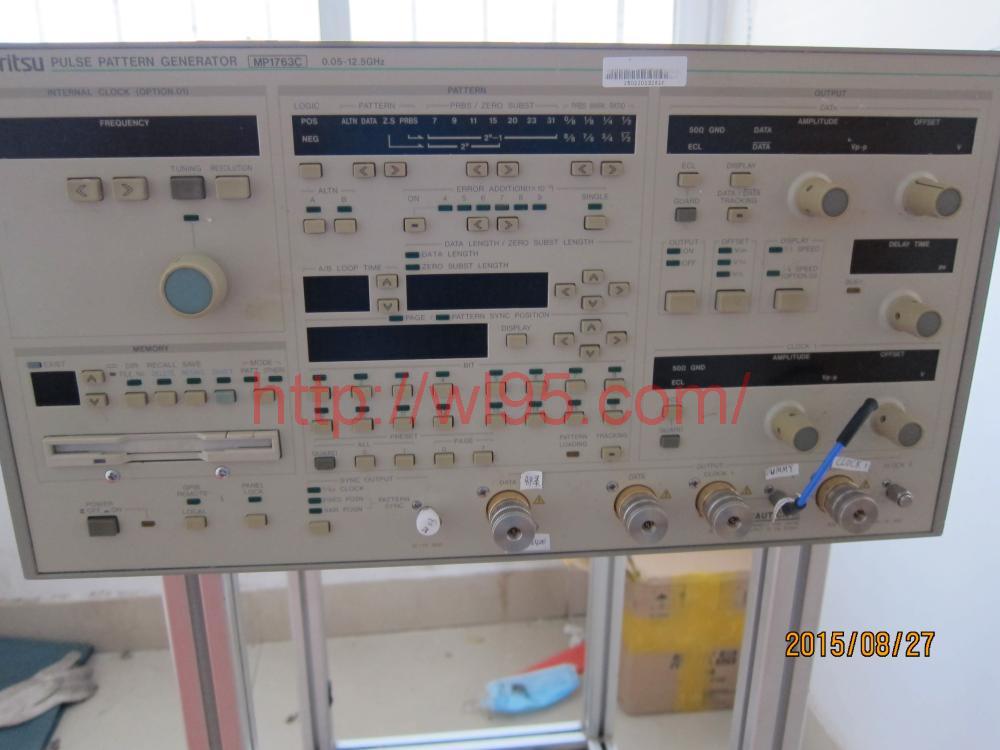

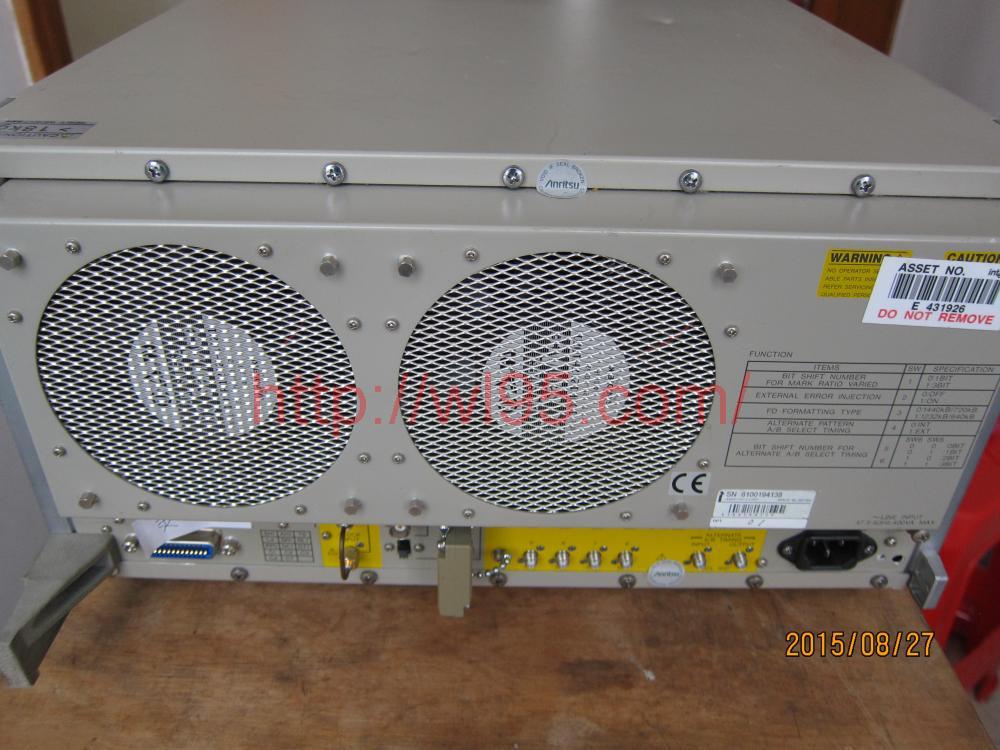

Anritsu/MP1763C/0.05 to 12.5 GHz码型发生器详细描述
The amplitude of the clock and data signals can be varied from 0.25 to 2 Vp-p while the offset can be adjusted to within ±2 V so that the amplitude and the offset margin can be measured. The clock has a variable delay function so that time dependent characteristics or phase margins of the input clock and data can be measured. An M-series pseudorandom pattern representative of actual conditions or a programmable pattern can be selected as cell data.
1/8 parallel output is standard, and options are available for either 1/4 parallel output or 1/4 differential output. This is the industry's only 12.5G BERT system with differential inputs and ¼ differential outputs required for SAN market device applications.
In addition, a 3.5 inch floppy disk drive is built in for storing preset data, enabling rapid measurements to be performed by simply pressing a key. A GPIB function is provided, enabling automatic or remote measurement via an external controller.
The MP1763C pulse pattern generator is ideal for research and development of high-speed logic, ICs, and digital systems.
