Description:

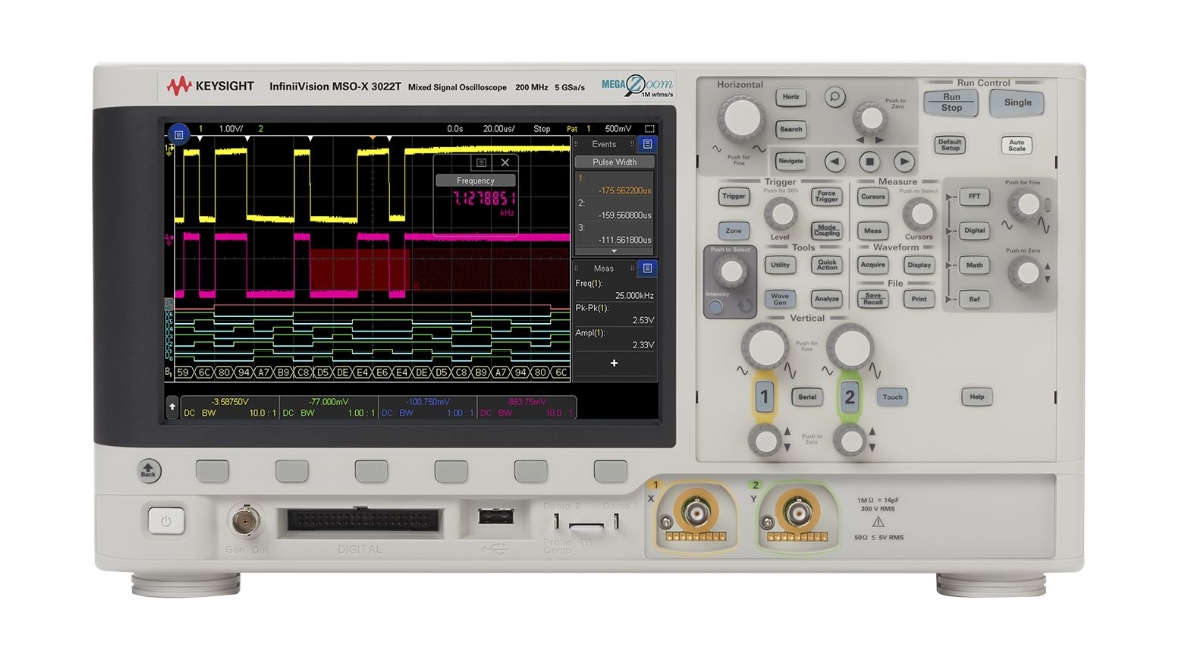

The MSOX3022T 200 MHz oscilloscope offers 2 analog channels and 16 digital channels, 4 Mpts of memory, an update rate of 1,000,000 waveforms per second, and a standard trigger with an 8.5-inch capacitive touchscreen for the trigger area.
Feature:
Channel Configuration: It features 2 analog channels and 16 digital channels. This mixed-signal design enables simultaneous measurement and analysis of both analog and digital signals, making it suitable for various complex electronic circuit testing scenarios, such as synchronous monitoring of analog sensor signals and digital control signals in embedded system development.
Bandwidth Performance: The bandwidth is 200 MHz, capable of accurately capturing and displaying signals up to 200 MHz in frequency. It can meet the measurement requirements of most conventional electronic signals, such as audio signals and general RF control signals.
Sampling Rate and Memory Depth: The sampling rate is up to 5 GSa/s, allowing for rapid signal sampling and ensuring accurate capture of details of high-frequency signals. The standard memory depth is 4 Mpts, which can store long-term signal data, facilitating long-term monitoring and subsequent analysis of the signals.
Waveform Update Rate: The waveform update rate reaches 1,000,000 waveforms/s, enabling rapid refreshing of waveform display, allowing users to observe smoother signal changes and more easily detect occasional abnormal signals or glitches.
