Product Introduction:
Powerful and user-friendly interface with offline analysis capabilities, fully compatible with a wide range of application software, offering various detection solutions, including a solution specifically designed for power integrity measurement: N7020A power probe, providing multiple protocol application solutions, such as CAN, LIN, PCI Express, FlexRay, I2C, SATA, USB, MIPI D-PHY, and RS-232/UART.
Feature:
4GHz bandwidth (upgradeable)
Four analog channels and sixteen digital channels
With a sampling rate of up to 20 GSa/s and a standard 50 Mps memory per channel, it can capture longer signal traces.
With a 7.2-bit system ENOB and a 10-bit analog-to-digital converter (ADC), excellent signal integrity can be achieved.

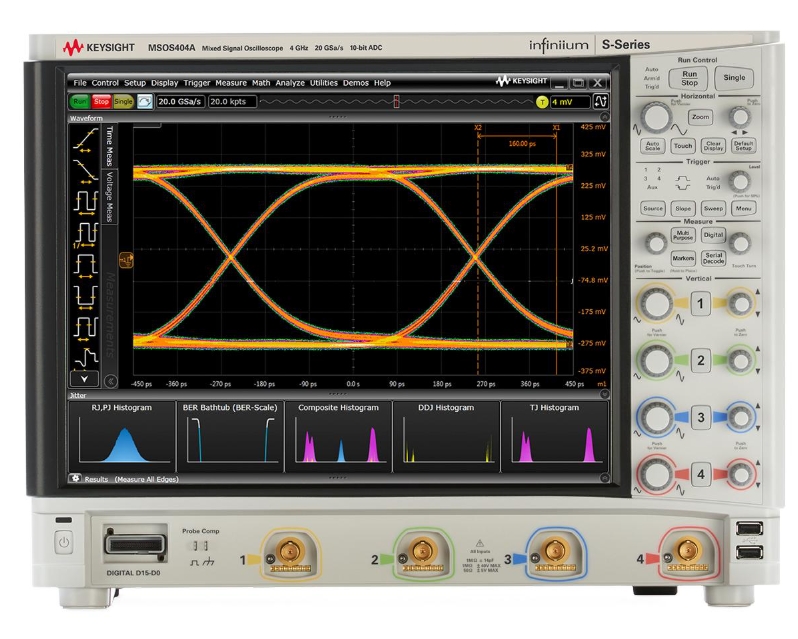

The 15-inch multi-touch capacitive touchscreen makes the oscilloscope easier to use, and the solid-state hard drive can speed up the startup time and enhance reliability.
Large-sized touch screen: Equipped with a 15-inch multi-touch capacitive touch screen, the operation is intuitive and convenient. Users can directly perform various operations on the screen, such as waveform zooming, translation, measurement parameter setting, etc., which greatly improves the operation efficiency and reduces the learning cost.
Fast startup and reliable storage: Using solid-state hard drives speeds up the startup time of the oscilloscope, reduces the waiting time for users, and also enhances the reliability of the storage system, ensuring the safe storage and fast reading of data.
