Description:

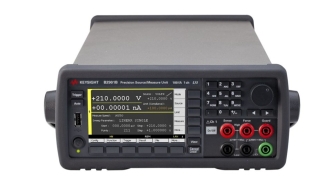

The Keysight B2901B Precision Source/Measurement Unit (SMU) is a 1-channel, compact and cost-effective bench-top SMU that can source and measure voltage and current. It can easily measure the relationship between current and voltage (I/V) with high accuracy. The 4-quadrant source and measurement functions enable I/V measurements without the need to configure multiple instruments.
Feature:
Configure for single-channel operation
Minimum source resolution is 1 pA/1 μV, minimum measurement resolution is 100 fA/100 nV
Maximum output is 210 V, 3 A DC/10.5 A pulse
Integrated measurement function for 4-quadrant source
Color 4.3-inch display supports graphical and digital view modes
Application software helps provide PC-based instrument control for free
High throughput and SCPI command support traditional SMU command set
Waveform generation (arbitrary) and digitization functions with an interval of 20 μs
