Product Description:

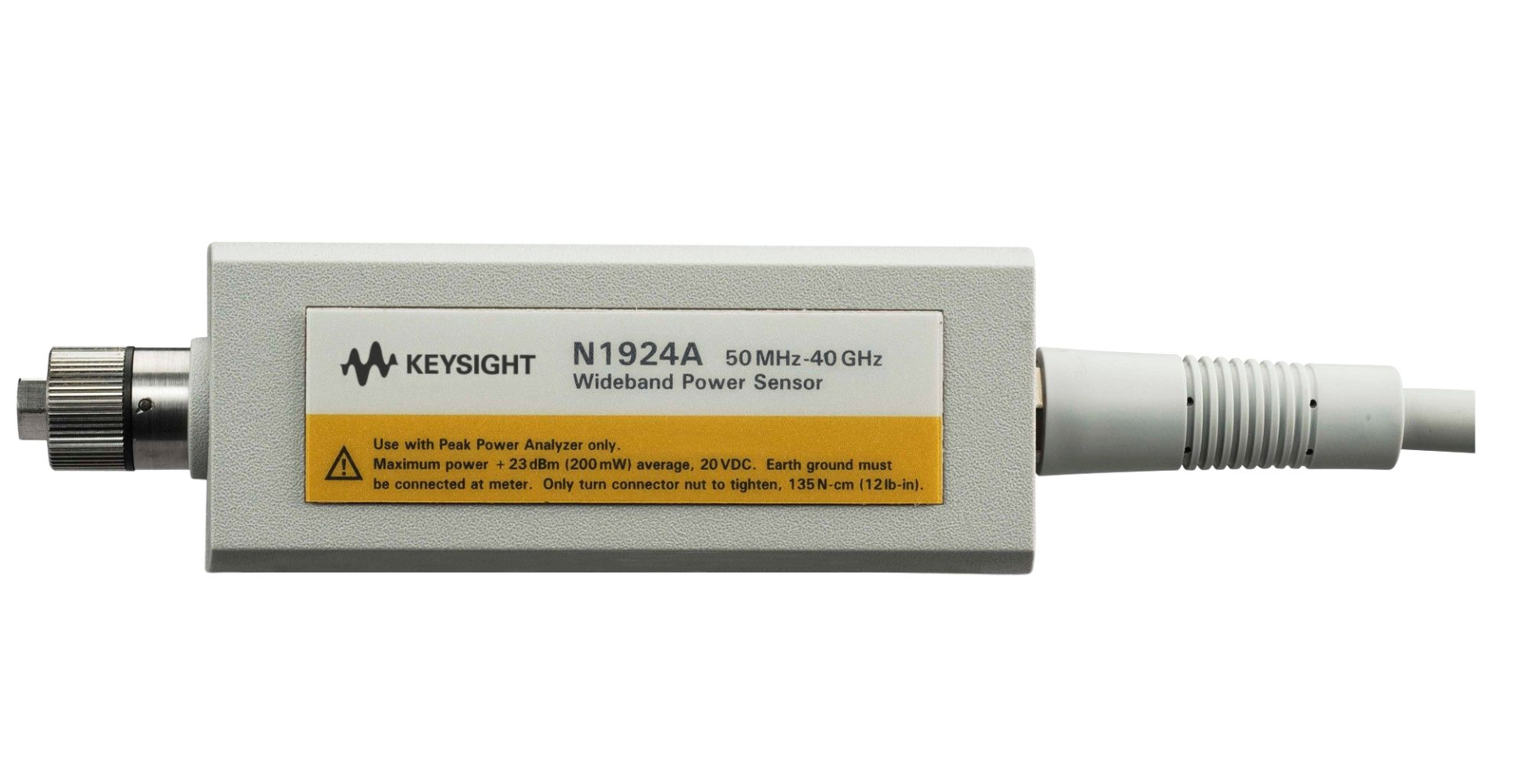

The N192XA sensor provides internal zeroing and calibration functions by integrating a DC reference source and a switching circuit into the power sensor. This feature eliminates multiple connections associated with the use of an external calibration source, thereby minimizing connector wear, testing time, and measurement uncertainty.
Feature:
Frequency range: The frequency range of the N1924A broadband power sensor is from 50 MHz to 40 GHz, covering a wide range of radio frequency and microwave bands.
Dynamic range: This sensor has a wide dynamic range of -35 dBm to +20 dBm, suitable for peak power measurement.
Internal zeroing and calibration: The N1924A integrates a DC reference source and switching circuits, providing internal zeroing and calibration functions, eliminating multiple connections associated with using an external calibration source, thereby minimizing connector wear, testing time, and measurement uncertainty.
Calibration data storage: Key information such as calibration factors, linearity, temperature, and bandwidth correction data is stored in EEPROM (electronic erasable programmable read-only memory), making it convenient to call up and verify at any time.
