Product Description:

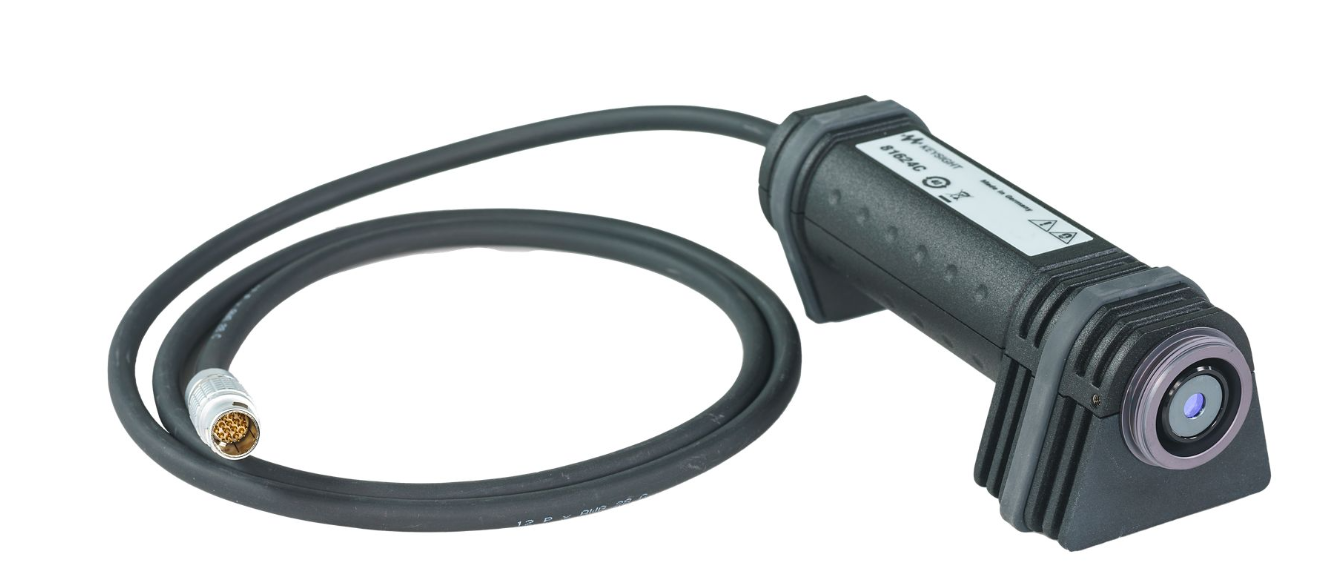

The new 81624C optical power probe offers a 5 mm detector area and allows for flexible placement of the remote optical power meter, which can then be connected to the N7749C. The 81624C accepts parallel beams up to 4 mm in diameter, standard SM fibers, and MM fibers with a maximum core diameter of 100 μm and NA ≤ 0.3. A variety of adapters are available, allowing input from popular fiber connector types, bare fibers, or open beams. The magnetic D-shaped adapter enables quick disassembly and replacement without distorting the connected fiber.
Features:
Remote head control
Average time range for all head samples: 100 μs to 10 s
Readout via LAN and USB interfaces, with built-in Web browser GUI
Keysight-compatible SCPI command set for optical power meters
Records power values using dual 1M sample buffers for each head, with continuous sampling via internal or external triggering
Uninterrupted synchronous measurement and readout minimize the overhead time for repetitive measurements
Universal trigger concept for the entire series
