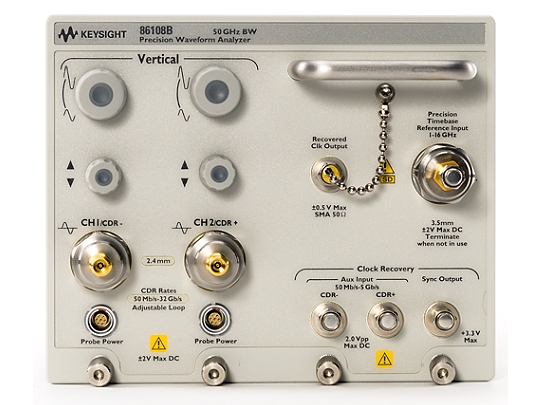

Product Description:
-
Gain margin with high instrument performance: high BW (50 GHz or 35 GHz) receivers, ultra-low residual jitter (< 50 fs typical); adjustable clock recovery peaking & loop BW
-
Reduce development time through instrument flexibility with integrated clock recovery (data rates 50 Mb/s to 32 Gb/s) & integrated pickoffs & phase matched cables for simple one connection “triggerless” operation
-
Reduce validation time with analysis tools like Jitter Spectrum Analysis & SW Clock Recovery Emulation
Product Features
• Unprecedented performance
- Bandwidth up to 50ghz
- Ultra-low time base jitter < 50 fs rms(typical)
- The integrated clock recovery rate is 32gb /s
- The clock recovery loop bandwidth and peak value are adjustable
• Unparalleled value and flexibility
- The lowest cost oscilloscope solution, supporting 10-28 Gb/s
signal
- Continuous data rate coverage from 50mb /s to
32 Gb / s
- Simple and convenient connection
- Upgradeable hardware (BW and CR options)
