Description:

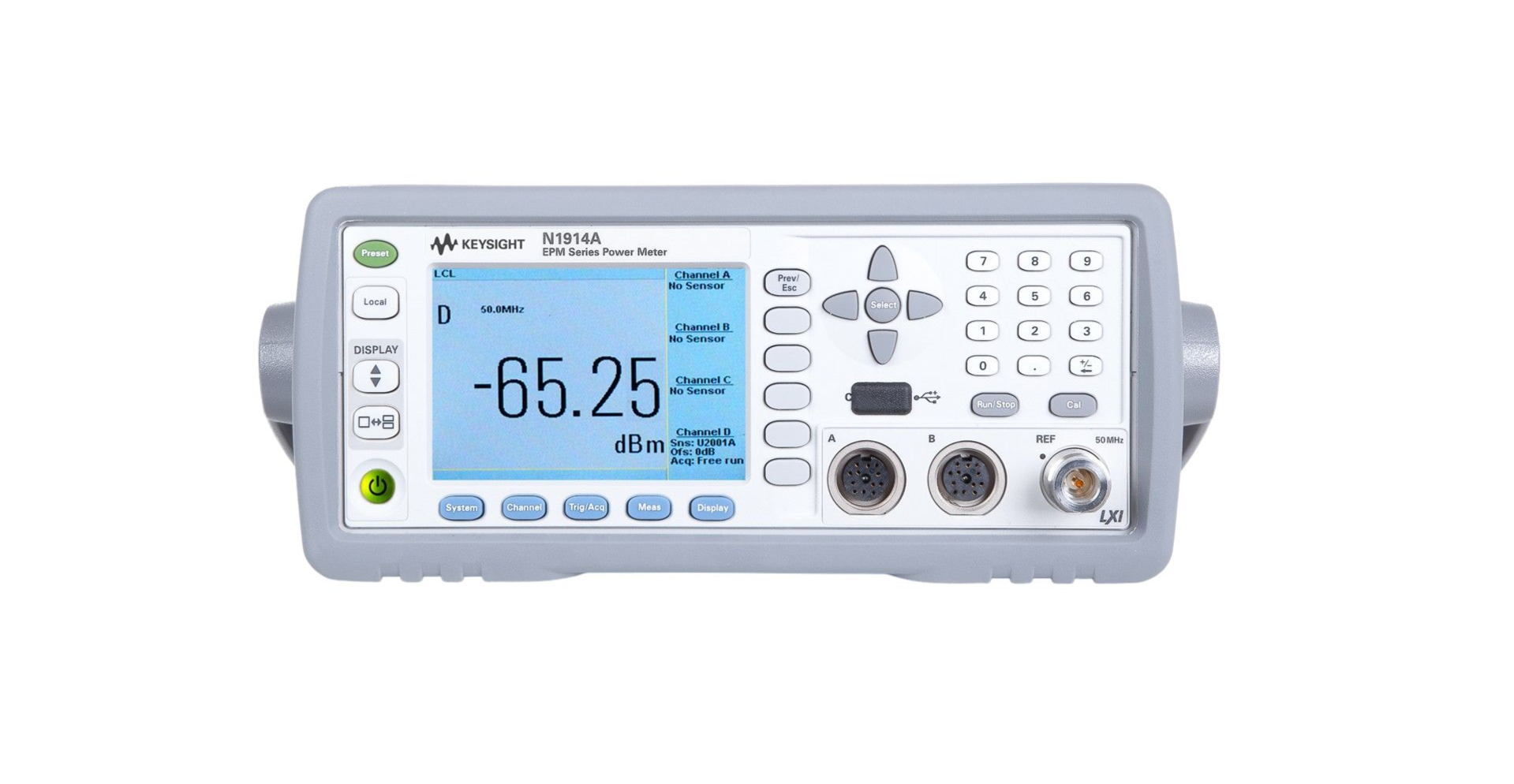

The Keysight N1914A is a high-performance dual-channel RF power meter, widely used in the field of RF and microwave power measurement. It features a broad frequency range (9 kHz to 110 GHz) and a wide dynamic range (-70 to +44 dBm), capable of meeting the demands of various complex applications. The device supports multiple connection methods, including GPIB, LAN LXI-C, and USB, facilitating integration with external control systems. Additionally, the N1914A offers fast reading capabilities, up to 400 readings per second, significantly enhancing measurement efficiency.
Features:
Frequency range: DC to 120 GHz (depending on the sensor)
Wide dynamic range: -70 to +44 dBm (depending on the sensor)
Beyond GPIB connection via LAN LXI-C and USB
Code compatible with E4418/19B power meters and 436A/37B/38A power meters (Option 200)
Increased measurement channels: up to 4 channels, using the optional USB host to connect two additional U2000/U8480 series and U2050 X series USB power sensors
