Product Description:

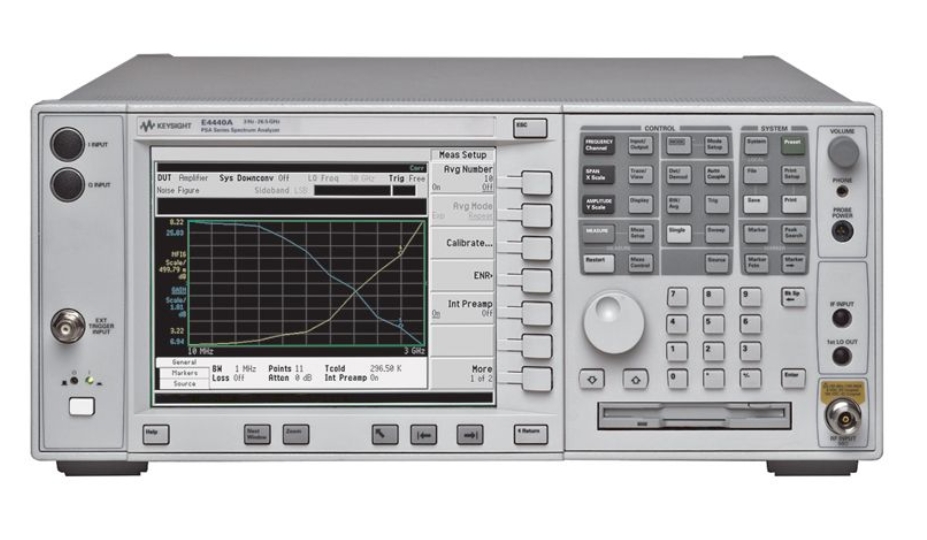

The Tektronix (Agilent) E4440A offers high-performance spectrum analysis up to 26.5 GHz, featuring powerful one-click measurement capabilities, a versatile feature set, as well as flexibility, speed, accuracy, analysis bandwidth, and dynamic range. From millimeter wave and phase noise measurements to spurious signal search and modulation analysis, the Tektronix (Agilent) E4440A 3 Hz to 26.5 GHz PSA spectrum analyzer provides a unique and comprehensive high-performance solution for R&D and manufacturing engineers in the fields of cellular and emerging wireless communications, aerospace, and defense.
Feature:
Frequency range: 3 Hz-26.5 GHz
+/-0.19 dB absolute amplitude accuracy
-155 dBm Display Average noise level (DANL)
The phase noise at 10 kHz offset is -118 dBc/Hz
81 dB W-CDMA ACLR dynamic range
Easy to use built-in measurement (optional)
80 MHz bandwidth digitizer (optional)
Full digital IF with automatic range function
Phase noise optimization
Complete detector kit
160 resolution bandwidth Settings (10% steps)
2 dB stepping attenuator
FFT and scan measurement modes
Gait sweep
Power Suite One-touch power measurement
EMI measurement
