Product Description

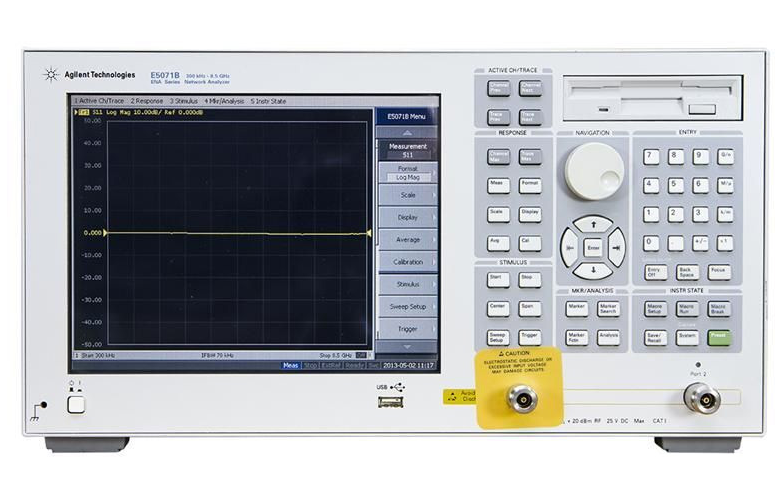

The Keysight E5071B is a high-performance RF vector network analyzer (VNA) designed for fast and precise RF component measurements. It covers a frequency range from 300 kHz to 8.5 GHz and supports 2, 3, or 4-port configurations, with a typical dynamic range of 125 dB at the test ports. Its advanced architecture minimizes scan times for multi-port measurements, significantly improving test efficiency, making it ideal for R&D, production, and educational applications.
Key Features
-
Wide Frequency Range: 300 kHz to 8.5 GHz, suitable for diverse RF applications.
-
High Dynamic Range: 125 dB typical at test ports for accurate measurements.
-
Ultra-Fast Sweep Speed: 9.6 µs per point, enhancing test throughput.
-
Low Trace Noise: 0.001 dB rms for improved small-signal detection.
-
Multi-Port Integration: Supports 2, 3, or 4-port configurations with balanced measurement capability.
-
Fixture Embedding/De-embedding: Enables port impedance transformation for complex fixture environments.
-
Frequency Offset Mode: Supports mixer and frequency converter testing.
-
Automation & Programmability: Built-in VBA (Visual Basic for Applications) and Measurement Wizard Assistant software for automated testing.
