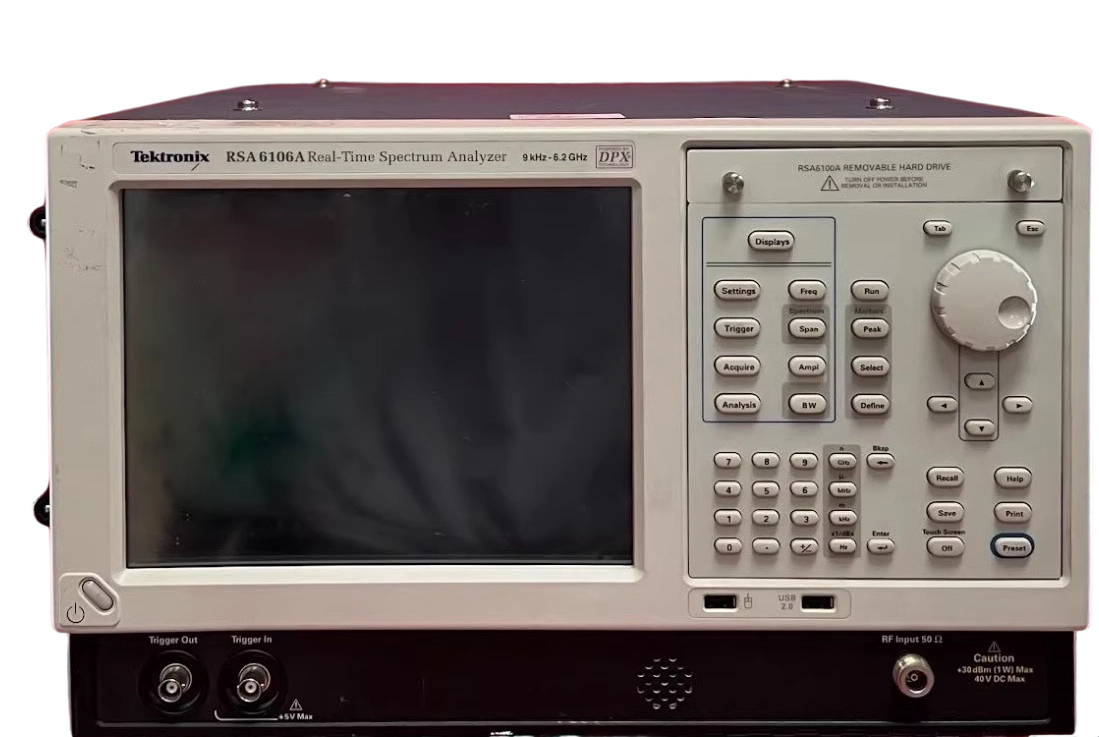

Tektronix RSA6106A is a high-performance real-time spectrum analyzer with a frequency coverage of 9kHz to 6.2GHz, designed for scenarios such as spectrum management, radar/EW, RF debugging, radio & satellite communications, and EMI diagnostics. Relying on industry-leading dynamic range and real-time acquisition capability, coupled with the unique DPX live RF spectrum display technology, it can update 48,000 spectrums per second, enabling instant capture and display of fault signals, thus providing intuitive support for design stability verification. Equipped with multi-mode operation interfaces including touch screen, keyboard and mouse, and supporting flexible expansion, it is a professional testing tool suitable for both laboratory precise analysis and on-site rapid diagnosis.
-
Frequency & bandwidth: Frequency range 9kHz to 6.2GHz, standard real-time acquisition bandwidth 40MHz, optional 110MHz extended bandwidth (Option 110).
-
Display & update: Equipped with a digital phosphor screen, spectrum update rate up to 48,000 per second, supporting DPX live RF spectrum display for faster fault capture.
-
Operation & storage: Features touch screen, keyboard, mouse and front panel for easy operation; standard memory 256MB, upgradable to 1GB.
-
Expansion functions: Optional function modules including phase noise and jitter measurement (Option 11), OFDM analysis (Option 22), internal preamplifier (Option 01), etc..
-
Trigger & analysis: Supports trigger modes like free run, triggered, FastFrame; standard basic analysis functions, optional advanced signal analysis (including pulse measurements) and digital modulation analysis.
