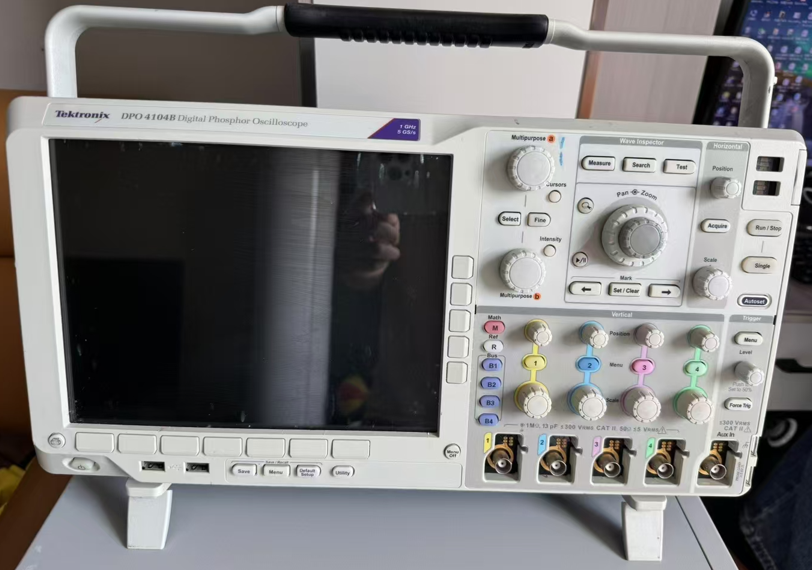

Product Overview:
With the MSO/DPO4000B mixed Signal oscilloscope series, you can analyze up to 20 analog and digital signals with one instrument to quickly find and diagnose problems in complex designs. Bandwidth of up to 1 GHz and up to 5x oversampling across all channels ensures you have the performance you need to see rapidly changing signal details. To capture a long window of signal activity while maintaining good timing resolution, the MSO/DPO4000B series offers a depth recording length of up to 20M points standard on all channels.
Tektronext's MSO/DPO4000B oscilloscope family features Wave Inspector® controls for fast waveform navigation, automatic serial and parallel bus analysis, limit and template testing, and automatic power analysis, providing the feature-rich tools needed to simplify and accelerate debugging of complex designs.
Features:
Main performance index
1 gigahertz
5/5/5 GS/ second
1/2/4 Channels
20M record length
4 channel digital fluorescence oscilloscope
Usability function
Wave Inspector® controls provide easy navigation and automatic search of waveform data
41 automatic measurements, waveform histograms, and FFT analysis simplify waveform analysis
The TekVPI® probe interface supports active, differential, and current probes for automatic calibration and unit
10.4 inch (264 mm) bright XGA color display
