Product introduction:

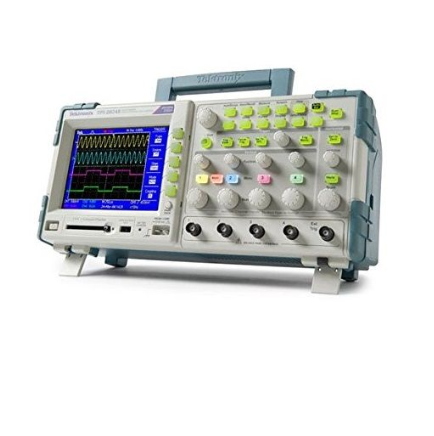

TPS2014B is a 100 MHz, 4-channel digital oscilloscope from Tektronix. Measure voltage or current signals in an electronic circuit or component that change over time to show amplitude, frequency, rise time, etc. Applications include troubleshooting, production testing, and design.
Features:
-
Bandwidth: 200MHz
-
Sampling rate: 2 GS/s real-time
-
4 fully isolated and floating channels, plus isolated external triggers
-
Record length: 2.5 kpts
-
8 hours continuous battery operation, two batteries installed, hot swappable, almost unlimited use of AC power
-
Optional power application software offers the widest range of power measurement at its price
-
Fast recording and analysis of measurement results using OpenChoice® software or integrated CompactFlash® mass storage
-
FFT standard
-
Advanced triggers that quickly capture events of interest
-
Traditional analog knob and multilingual user interface, easy to operate
-
Use the automatic Settings menu, automatic range, waveform and Settings memory, and built-in context-sensitive aid for quick Settings and operations
-
Backlight menu buttons to improve visibility
-
Eleven of the most critical automatic waveform measurements
