Product Description

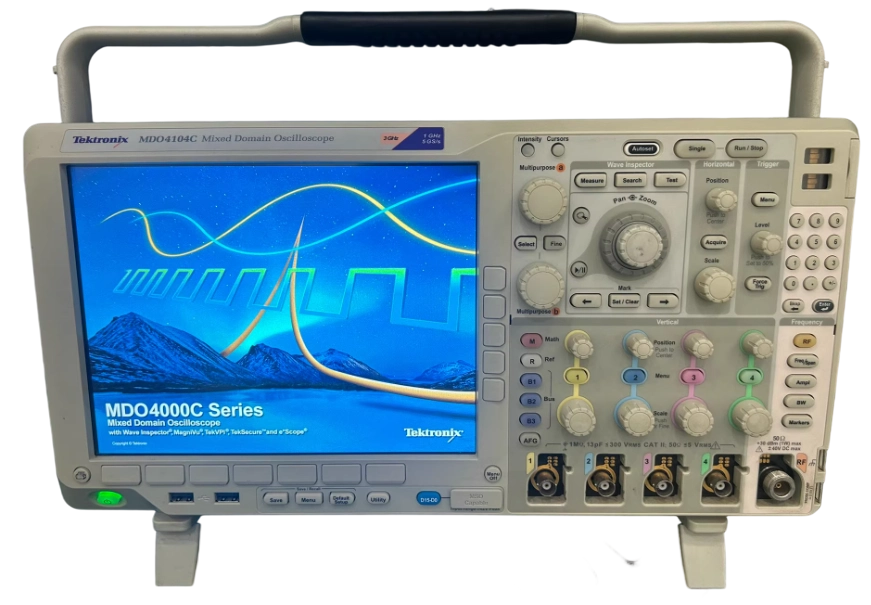

The Tektronix MDO4104C is a 6-in-1 integrated mixed-domain oscilloscope, designed as a professional test instrument for multi-signal synchronous analysis. It can be flexibly configured with various optional modules such as spectrum analyzers and logic analyzers, supporting synchronous acquisition of analog, digital and RF signals. It offers both complete customization and upgradeability, and is suitable for system-level testing scenarios such as wireless module integration and EMI fault detection.
Characteristics
With a 1GHz analog bandwidth and a sampling rate up to 5GS/s, all channels offer a 20M record length, precisely capturing the details of high-frequency signals.
Equipped with 4 analog channels, it can optionally have 16 digital channels and 1 RF channel. It supports synchronous analysis of various types of signals and trigger by any channel.
It has an ultra-fast acquisition capability of over 340,000 waveforms per second, and can quickly identify transient signals and faults through color grading display.
Optional 3GHz or 6GHz spectrum analyzer, with a typical dynamic range of -65dBc and a 3.75GHz capture bandwidth, precisely analyzing RF signals.
