Product Description:

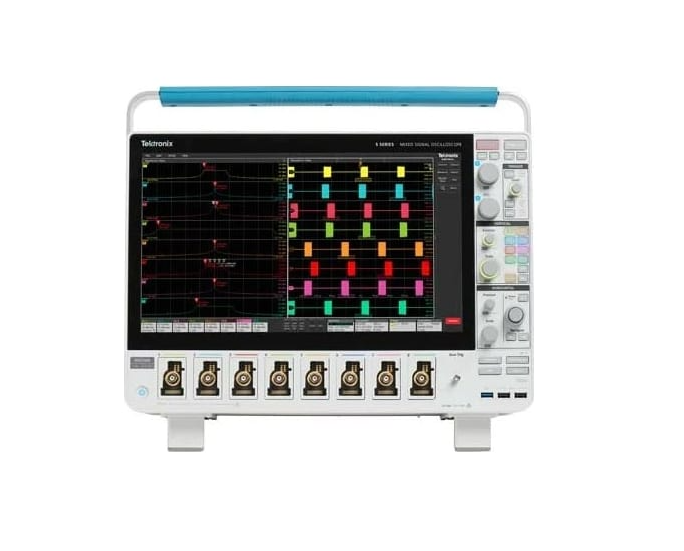

The Tektronix MSO58 is an 8 FlexChannel mixed-signal oscilloscope with a real-time sampling rate of 6.25 GS/s and a standard recording length of 62.5 Mpoints.
The Series 5 MSO provides better visibility into complex systems by offering four -, six - and eight-channel models with a large 15.6" HD (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-DC power converters require the observation of more than four analog signals to verify and characterize device performance and debug challenging system problems.
The Series 5 MSO offers a new level of digital channel integration. Digital channels share the same high sampling rate as analog channels (up to 6.25 GS/s) for fine timing resolution and long recording length (up to 125 Mpoints) for long capture times. Previous generation Msos require trade-offs, with digital channels having lower sampling rates or shorter record lengths than analog channels.
Product features:
8 FlexChannel™ inputs
64 optional digital channels
Each FlexChannel provides one analog signal input or eight digital logic inputs with TLP058 logic probes
Bandwidth: 350 MHz, 500 MHz, 1 GHz, 2 GHz* Optional and upgradeable
Sampling rate (all analog/digital channels) : Real-time: 6.25 GS/s; Interpolation: 500 GS/s
Record length (all analog/digital channels) : 62.5 Mpoints standard; 125 Mpoints 1 is optional
Waveform capture rate: >500,000 waveforms /s
Vertical resolution: 12-bit ADC
Up to 16 bits in high resolution mode
