为 160 MHz 与 802.11ax Wi-Fi 6 设备进行高效能测试

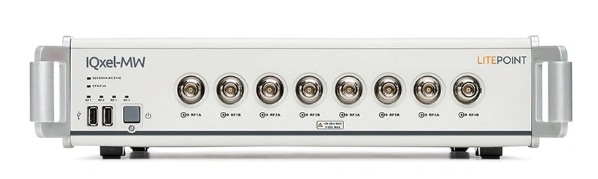

IQxel-MW™ 是一款性能卓越的全方位多装置测试解决方案，可用于测试新一代无线连线装置，是研发与大量生产阶段皆适用的理想方案。 其优化性能可确保设备的量测结果真实可靠，并可避免在量测设定中产生不确定性。 此测试解决方案可提高生产线上的测试量，并将重新测试率降到最低。
随着设备制造商纷纷采用802.11ac （Wi-Fi 5） 和 802.11ax （Wi-Fi 6） 技术，产品要求变得日益复杂，导致测试设定同样日趋复杂。 IQxel-MW 具备的新功能可简化生产测试，并降低生产成本。 IQxel-MW系列提供三种配置（2端口、8端口和16端口），最多可支持2×2、4×4且可扩充至8×8 True MIMO测试。
专为 802.11ax （Wi-Fi 6） 严苛的要求所设计
为制造阶段提供最高测试流量
运用统包软件解决方案迅速展开测试
技术选项
使用 IQxel-MW 进行测试的适用时机和环境
Conduct high-performance tests for 160 MHz and 802.11ax Wi-Fi 6 devices
IQxel-MW™ is an all-round multi-device test solution with outstanding performance, which can be used to test the new generation of wireless connection devices and is an ideal solution applicable to both the R&D and mass production stages. Its optimized performance can ensure the authenticity and reliability of the measurement results of the equipment and avoid uncertainties in the measurement Settings. This testing solution can increase the testing volume on the production line and minimize the retesting rate.
As device manufacturers have adopted 802.11ac (Wi-Fi 5) and 802.11ax (Wi-Fi 6) technologies one after another, product requirements have become increasingly complex, resulting in equally complex test Settings. The new functions of IQxel-MW can simplify production testing and reduce production costs. The IQxel-MW series offers three configurations (2 ports, 8 ports and 16 ports), and can support up to 2×2, 4×4 and be expanded to 8×8 True MIMO testing.
Designed specifically for the strict requirements of 802.11ax (Wi-Fi 6)
Provide outstanding residual EVM performance for 1024 QAM
Unparalleled RF port setup capability, no need to use external components in the test equipment
Natively supports individual port combinations of 160 MHz and 80+80 MHz signals
Dual-frequency tests (2.4GHz and 5GHz) can be conducted simultaneously: ensuring the performance of TX/TX, TX/RX and RX/RX operation modes
Supports single-user OFDMA, multi-user OFDMA, upload links and download links
The patented Packet Engine™ technology is accessible
