Product Description:

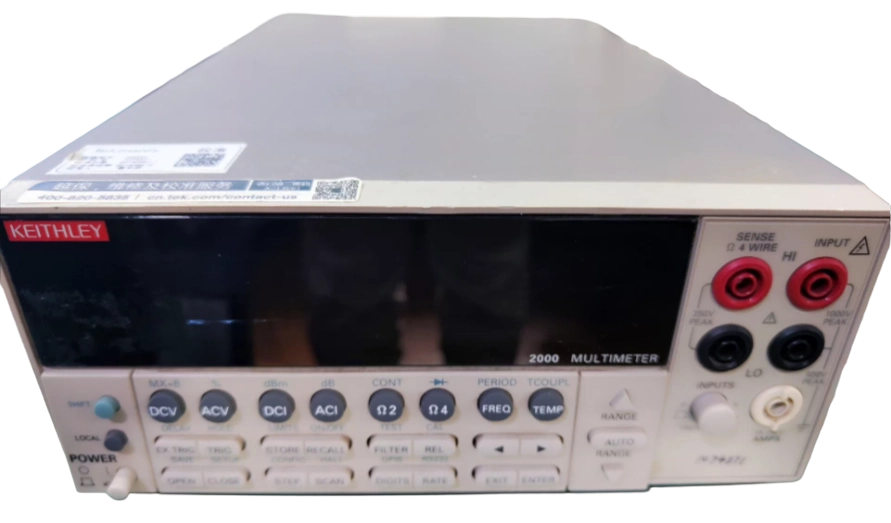

Keithley 2000 can measure various electrical parameters such as DC voltage, DC current, AC voltage, and AC current. It has 13 built-in measurement functions. It is equipped with IEEE-488 and RS-232 interfaces, enabling connection and communication with computers and other devices, facilitating data transmission and program control operations. For multi-point measurement applications, by selecting the switch card, up to 20 input signal multiplexing can be achieved.
Feature:
High-precision measurement: The DC voltage range is from 100nV to 1kV, with a 90-day basic accuracy of 0.002%; the DC resistance range is from 100μΩ to 100MΩ, with a 90-day basic accuracy of 0.008%. This enables precise measurement and provides accurate data.
Rich measurement functions: It features 13 measurement functions including DC voltage/current, AC voltage/current, 2-wire/4-wire resistance, frequency/period, dB/dBm, temperature, conduction, diode, etc. It can also measure peak factors, sharp spikes, etc., meeting various measurement requirements.
Fast measurement speed: In the six-decimal mode, it can reach 50 readings/second through the IEEE-488 bus; in the four-decimal mode, it can reach 2000 readings/second, and it has a 1024-readings buffer, suitable for scenarios with requirements for measurement speed.
