产品介绍：

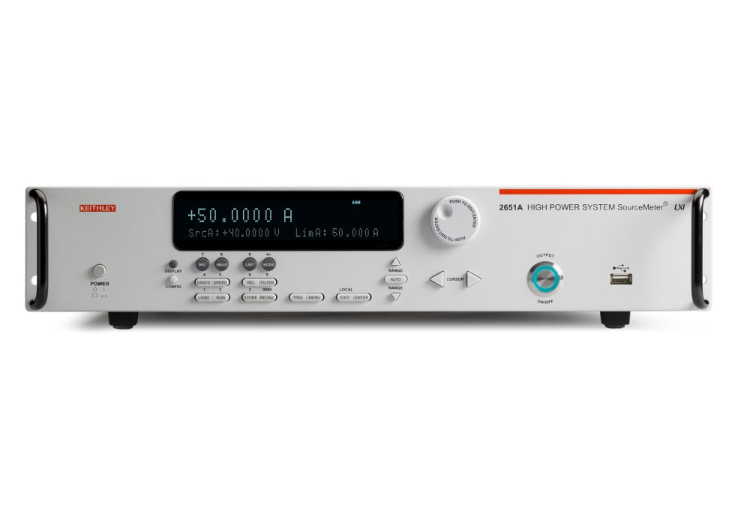

大功率2651A 型数字源表进一步丰富了2600A 系列产品。该源表专门针对大功率电子器 件的特性分析和测试而优化设计，可帮助用户在研发、可靠性及生产领域提高生产力，包 括高亮度LED、功率半导体、DC/DC 转换器、电池，以及其他大功率材料、元件、模块 和组件的特性分析和测试。
特点：
2台并联使用，可以产生±40A的直流或±100A的脉冲电流（最小
脉冲100μs),2台串联使用，可以产生±80V的电压：
测试功率MOSFTET器件的导通阻抗RDSONE的指标优于100μQ:
可以输出高的脉冲电流，以减少器件的自热效应；
1pA的分辨率可以进行精密的非常低的漏电流测试；
1μs每点，18bt的采样，可以对瞬态现象进行精确的特性分析；
(1-100)%的脉冲占空比；
包括TSP Express特性测试软件，Labview驱动；
Keithey ACSi测试软件支持；
Product introduction:
High-power type 2651A digital source meter further enrichis 2600A series products. Optimized for characteristic analysis and testing of high-power electronic components, the source table can help users improve productivity in the field of research and development, reliability and production, including high-brightness leds, power semiconductors, DC/DC converters, batteries, and other high-power materials, components, modules and components.
Features:
2 in parallel, can produce ±40A DC or ±100A pulse current (minimum
Pulse 100μs),2 PCS used in series, can produce ±80V voltage:
Test power MOSFTET device conduction impedance RDSONE index is better than 100μQ:
High pulse current can be output to reduce the self-heating effect of the device;
The 1pA resolution allows for precise, very low leakage current measurements;
The transient phenomenon can be accurately analyzed by sampling 18bt at 1μs per point.
Pulse duty cycle of (1-100)%;
Including TSP Express feature test software, Labview driver;
Keithey ACSi test software support;
