产品描述：

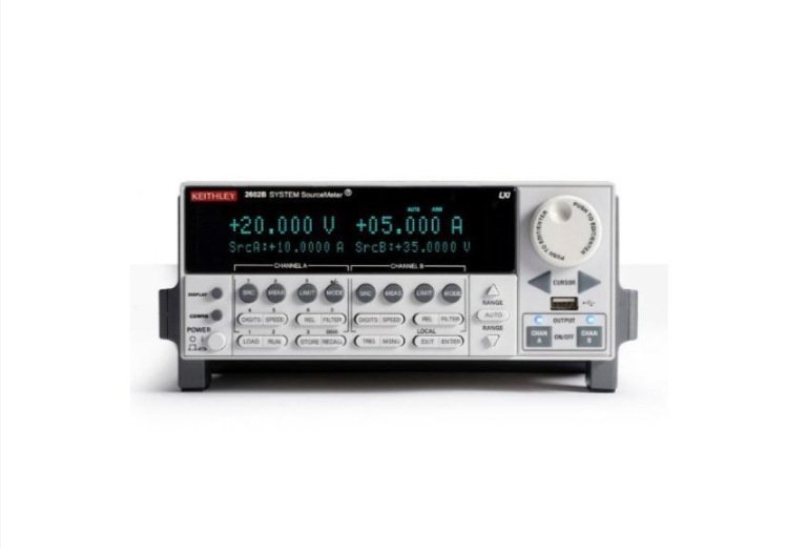

Keithley 的 2600B 系列 SMU 仪器是行业标准的电流-电压源和测量解决方案，适用于高度自动化的生产测试应用。双通道和单通道型号将精密电源、真电流源、DMM 和电子负载与脉冲生成功能紧密集成在一起。此外，TSP® 技术可为自动化系统应用运行完整的测试程序，而 TSP-Link® 技术可实现多达 64 个通道的菊花链连接，以实现大批量并行测试。
在不牺牲占地面积的情况下完成生产测试
通过两个完全隔离的宽动态源通道满足您的所有生产测试需求，并在相同的占地面积内进行测量。每个 40 W 通道提供 61/2 位精度分辨率源，可在 10 A 脉冲至 0.1 fA 和 200 V 至 100 nV 的脉冲宽度下进行测量，脉冲宽度小于 100 μs，且稳定值的 0.1% 以内。
特点：
电压范围： 200 mV 至 200 V
电阻范围：500 mΩ 至 200 Ω
准确性： 0.02 %
交流电源电压：100 VAC 至 250 VAC
Product Description
Keithley's Series 2600B SMU instruments are industry standard current-voltage sources and measurement solutions for highly automated production test applications. Dual - and single-channel models tightly integrate precision power supplies, true current sources, DMM and electronic loads with pulse generation capabilities. In addition, TSP® technology can run complete test procedures for automated system applications, while TSP-LINK ® technology enables Daisy chain connections of up to 64 channels for high-volume parallel testing.
Complete production testing without sacrificing floor space
Meet all your production test needs with two wide dynamic source channels that are completely isolated and take measurements on the same footprint. Each 40 W channel provides A 61/2 bit precision resolution source that can be measured at pulse widths of 10 A pulses to 0.1 fA and 200 V to 100 nV, pulse widths less than 100 μs, and within 0.1% of the stable value.
Features:
Voltage range: 200 mV to 200 V
Resistance range: 500 mΩ to 200 Ω
Accuracy: 0.02%
Ac supply voltage: 100 VAC to 250 VAC
