产品描述：

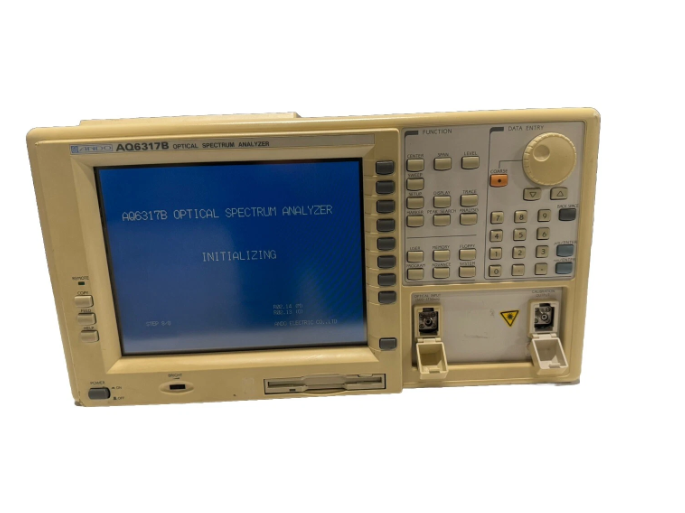

Ando AQ6317B 是一款高精度的光谱分析仪，在光通信领域应用广泛。安藤 AQ6317B 光谱分析仪的波长范围为 600-1750nm，具备高波长精度和分辨率，采用 9.4 英寸彩色 LCD 显示屏，可显示脉冲光，拥有三个独立的轨迹存储器，能存储 32 条轨迹和 20 个程序。
产品特点：
波长精度高：在 1520-1580nm 波长范围内，波长精度可达 ±0.02nm；在 1580-1620nm 波长范围内，波长精度为 ±0.04nm，波长线性度为 ±0.01nm。
分辨率高：波长分辨率可达 0.015nm，能够精确分辨不同波长的光信号。
动态范围宽：对于 50GHz 的 WDM 信号，在峰值 ±0.4nm 时动态范围为 70dB，在峰值 ±0.2nm 时动态范围为 60dB。
灵敏度高：可测量低至 - 90dBm 的光信号，覆盖 1200-1650nm 的波长范围。
偏振相关性低：偏振相关性低至 ±0.05dB，可准确进行光放大器增益等测量。
测量精度高：测量精度在 ±0.3dB 以内，可直接测量最高 + 20dBm（100mW）的光功率，无需光衰减器。
分析功能多样：支持 WDM、LD、LED、FBG 等多种光器件的分析，还具备 WDM 分析、陷波宽度分析、多通道 NF 分析和光滤波器分析等功能。
Product Description:
The Ando AQ6317B is a high-precision spectral analyzer, widely used in the field of optical communication. The wavelength range of the Aoki AQ6317B spectral analyzer is 600-1750nm. It features high wavelength accuracy and resolution, with a 9.4-inch color LCD display that can show pulsed light. It has three independent trajectory memory units, capable of storing 32 trajectories and 20 programs.
Product features:
High wavelength accuracy: Within the wavelength range of 1520-1580nm, the wavelength accuracy can reach ±0.02nm; within the wavelength range of 1580-1620nm, the wavelength accuracy is ±0.04nm, and the wavelength linearity is ±0.01nm.
High resolution: The wavelength resolution can reach 0.015nm, enabling precise discrimination of different wavelength optical signals.
Wide dynamic range: For 50GHz WDM signals, the dynamic range is 70dB at peak ±0.4nm and 60dB at peak ±0.2nm.
High sensitivity: It can measure optical signals as low as -90dBm, covering a wavelength range of 1200-1650nm.
Low polarization correlation: The polarization correlation is as low as ±0.05dB, allowing for accurate measurement of optical amplifier gain, etc.
High measurement accuracy: The measurement accuracy is within ±0.3dB, enabling direct measurement of the highest +20dBm (100mW) optical power without the need for an optical attenuator.
Diverse analysis functions: Supports the analysis of various optical devices such as WDM, LD, LED, and FBG, and also includes functions such as WDM analysis, notch width analysis, multi-channel NF analysis, and optical filter analysis.
