Product Description:

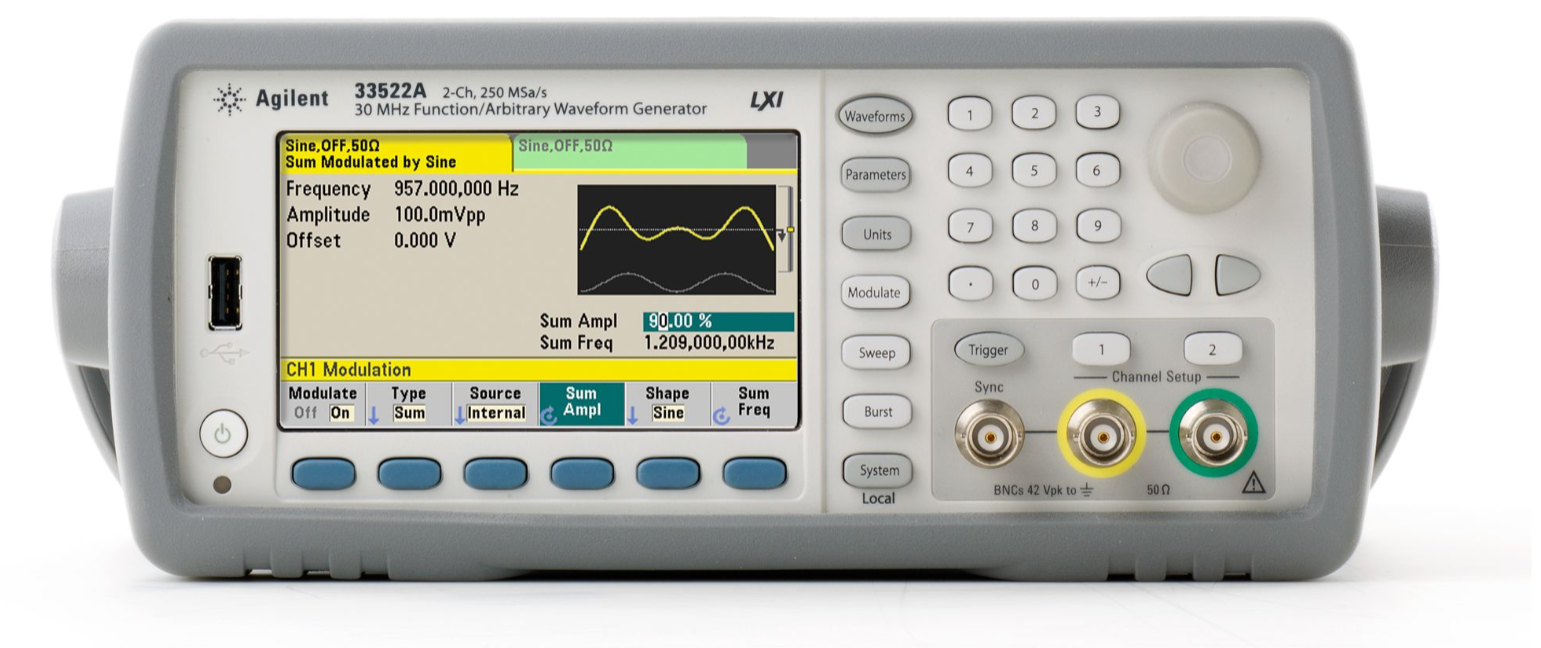

The Agilent 33522A has a sampling speed of 250 MSa/s and a resolution of 16 bits, enabling it to generate high-resolution arbitrary waveforms. It comes with a 1M-point waveform memory as standard, and an optional 16M-point memory is also available, allowing for the storage of more complex waveforms. This instrument features a large screen, high resolution, and high-brightness TFT graphic display. The operation interface is intuitive and it supports various standard waveforms and built-in arbitrary waveform generation. It also has multiple modulation functions such as AM, FM, and PM.
Product Features:
High-precision signal generation: The output frequency range of the sine wave is from 1µHz to 30MHz, with a resolution of 1µHz. The jitter is less than 40ps, and the total harmonic distortion is lower than 0.04%. It can generate high-precision signals. The amplitude range is from 1mVpp to 10Vpp, with a resolution of 1mV.
Rich waveform types: The standard waveforms include sine wave, square wave, ramp wave, pulse, triangle wave, Gaussian noise, etc. It also has built-in heart rate wave, exponential decay, Gaussian pulse, and other arbitrary waveforms. Users can also customize up to 1M points (option 002 can reach 16M points) of arbitrary waveforms and have the multi-segment waveform sequence function.
Flexible dual-channel mode: It has independent or coupled channel output modes, which can achieve frequency and amplitude coupling, differential or synthesized output, and is suitable for testing devices such as pacemakers that have requirements for timing and interaction between two signals.
High resolution and storage capability: The sampling speed is 250MSa/s and the resolution is 16bit, which can provide higher time and voltage resolutions for arbitrary waveforms. The standard waveform memory is 1M points, and the optional 16M-point memory can be selected to meet the storage requirements for complex waveforms.
