Product Description

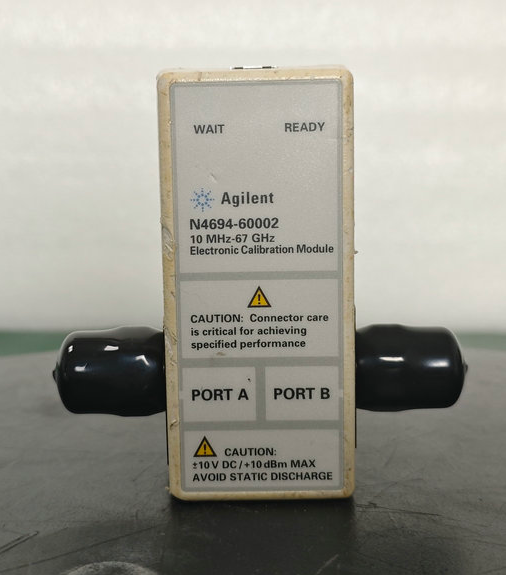

Agilent (now part of Tektronix) N4694-60002 is the 00M option model of the N4694A series 2-port microwave electronic calibration (ECal) module, configured with a 1.85 mm dual-needle (m-m) design, operating at frequencies ranging from 10 MHz to 67 GHz. It is specifically designed for rapid and high-precision calibration of vector network analyzers (VNA). N4694-60002 belongs to the N4694A series 2-port ECal module, with the corresponding part number for the 00M option, featuring a 1.85 mm dual-needle (m-m) RF interface, frequency coverage from 10 MHz to 67 GHz, using solid-state switches and built-in calibration data. It supports direct control via USB from series VNA such as PNA/ENA, and can be adapted to other analyzers via the 85097B interface. It achieves full dual-port calibration with a single connection, replacing traditional mechanical calibration kits, significantly enhancing calibration efficiency and consistency.
Key Features
Wideband high precision: 10 MHz – 67 GHz coverage in the millimeter wave frequency band, 1.85 mm precise interface, NIST traceable calibration, solid-state switches ensuring long-term stability and low repeatability errors.
Efficient low loss: Completes dual-port calibration with a single connection, with time and connection count being only about half of those for mechanical calibration; reduces repeated plugging and unplugging, and minimizes connector wear and human operational errors.
Flexible compatibility: Supports mainstream platforms such as PNA/ENA/PXI VNA, USB plug-and-play, and optional 85097B interface for adapting to older analyzers, suitable for RF testing scenarios of 1.85 mm systems.
