Product Description:

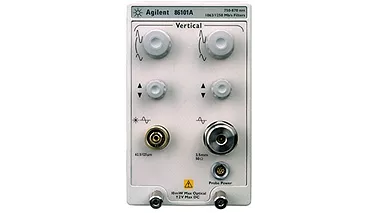

The 86101A provides the ideal measurement system for testing signals operating at 1063 or 1250 Mb/s, as well as other high-speed telecommunications signals. The calibrated integrated optical receiver has a bandwidth of more than 2.8 GHz and can easily and accurately measure single mode or multi-mode optical signals. Built-in average power meter. For conformance testing, hardware filters for 1063 Mb/s or 1250 Mb/s testing can be automatically switched to create a calibrated Fibre Channel or Gigabit Ethernet reference receiver. Switchable filters minimize setup time while maximizing measurement repeatability. 155 and 622 Mb/s filters are also available.
Features:
2.8 GHz optical channel for 62.5/125 fibers
Wavelength range: 750-860 nm
Characteristic rms Noise: 1.5 uW (3 GHz)
Reference receiver capability (155/622 Mb/s or 1.063/1.250 Gb/s)
20 GHz electrical channel with 3.5 mm male input
Characteristic rms noise: 0.25 mV (12.4 GHz bandwidth), 0.5 mV (20 GHz bandwidth)
