Product Description:

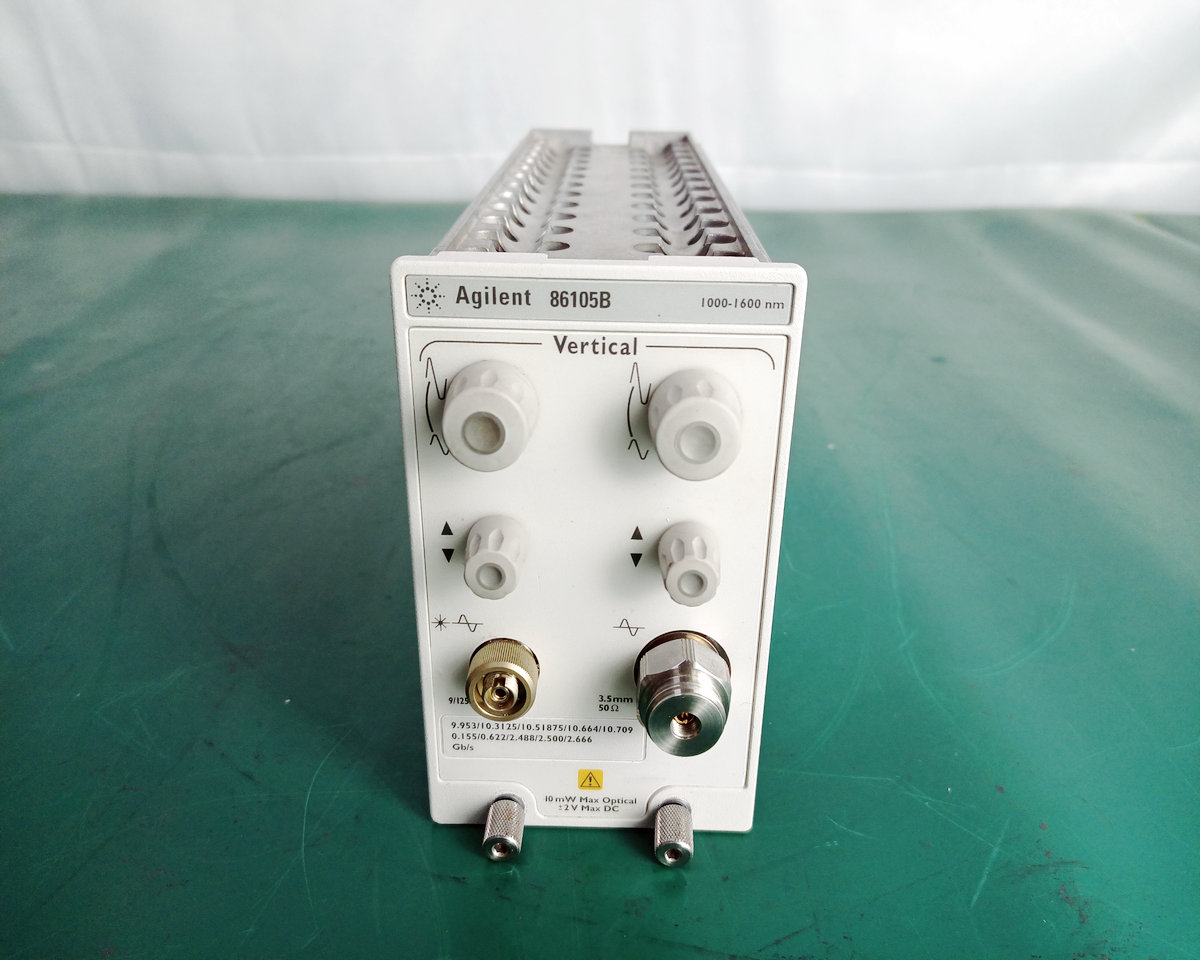

86105B is a module that combines both optical and electrical channels. The optical channel operates at 15GHz and is suitable for 9/125 optical fibers, with a wavelength range of 1000-1600nm; the electrical channel operates at 20GHz and features a 3.5mm male input. This module can be used for consistency testing of various transmitters and can characterize the optical transmission performance of SONET, Ethernet, and Fibre Channel technologies. The data rate range is from 155Mb/s to 10Gb/s. Product Features:
High bandwidth: The optical channel bandwidth is 15GHz and the electrical channel bandwidth is 20GHz, which can meet the measurement requirements for high-speed signals.
Low noise: The typical root mean square (rms) noise of the optical channel is 5uW (10GHz bandwidth) and 10uW (15GHz bandwidth), while the typical rms noise of the electrical channel is 0.25mV (12.4GHz bandwidth) and 0.5mV (20GHz bandwidth). The low noise characteristic helps to improve the measurement accuracy.
Wide wavelength range: The wavelength range of the optical channel is 1000-1600nm, which can cover various optical communication wavelengths and has a wide application range.
