产品描述：

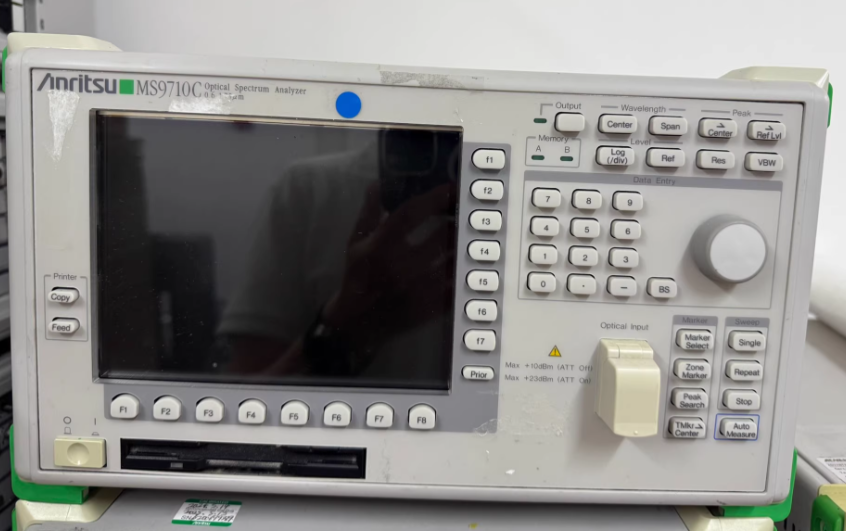

MS9710C光谱分析仪是一种衍生光栅型光谱分析仪，用于分析 600 至 1750 nm波段范围内的光谱。具有自动测量、峰值自动搜索、谱宽计算、标记到标记间光谱测量、SMSR的分析、曲线拟合、OBPF的测试、包络分析、n-dB衰耗、谱功率、WDM波长电平信噪比、光放大器增益、噪声系数、无源器件测试和各种光源分析等。MS9710C是MS9710B 的升级版。在波长精度，分辨率带宽，OSNR等方面性能有提高。
特点：
宽的波长范围:600-1750nm，覆盖单模、多模所有波段
高的波长精度和重复性，测试准确, 1530-1570nm波段的波长精度可达到+/-20pm
70dB的动态范围
距离峰值波长0.2nm的动态范围大于42dB，距离峰值波长1nm的动态范围为70dB, 可对50GHz通道间隔的DWDM系统进行高精度测试，在WDM光源的SNR测试方面和窄带光带通滤波器评价方面，MS9710C都具有优异的性能。
高灵敏度：-90dBm
可支持大功率输入：+23dBm
支持300个DWDM信道的波长、功率和信噪比的测试
Product Description:
The MS9710C spectrum analyzer is a derivative grating type spectrum analyzer for analyzing spectra in the 600 to 1750 nm band. With automatic measurement, automatic peak search, spectral width calculation, mark-to-marker spectral measurement, SMSR analysis, curve fitting, OBPF test, envelope analysis, n-dB attenuation, spectral power, WDM wavelength level signal-to-noise ratio, optical amplifier gain, noise figure, passive device testing and analysis of various light sources, etc. MS9710C is an upgraded version of MS9710B. The performance has been improved in terms of wavelength accuracy, resolution bandwidth, OSNR, etc.
Features:
Wide wavelength range: 600-1750nm, covering all bands of single-mode and multi-mode
High wavelength accuracy and repeatability, accurate test, the wavelength accuracy of 1530-1570nm band can reach +/-20pm
70dB dynamic range
The dynamic range from the peak wavelength of 0.2nm is greater than 42dB, and the dynamic range from the peak wavelength of 1nm is 70dB. It can perform high-precision tests on DWDM systems with 50GHz channel spacing, in terms of SNR testing of WDM light sources and evaluation of narrow-band optical band-pass filters. , MS9710C have excellent performance.
High sensitivity: -90dBm
Can support high power input: +23dBm
Supports wavelength, power and SNR testing of 300 DWDM channels
