产品描述：
安捷伦 86120C 多波长计是一款基于迈克尔逊干涉仪的高精度光测量仪器。安捷伦 86120C 多波长计主要用于测量 1270 至 1650nm 波长范围的激光波长和光功率，可同时测量多达 200 条激光线，能够对 DWDM 信号和 Fabry-Perot 激光器的多个纵模进行测量，适用于光器件和光网络的开发、制造、安装和验证等场景。
产品特点：
波长测量范围广：波长测量范围为 1270 至 1650nm（182 至 236THz），可满足多种光信号的测量需求。
测量精度高：绝对精度为 ±2ppm（激光线间距≥15GHz），在 1550nm 和 1310nm 处为 ±0.003nm，差分精度为 ±1ppm，波长分辨率可达 10GHz（1550nm 处为 0.08nm，1300nm 处为 0.06nm），显示分辨率为 0.001nm。
功率测量性能好：校准精度在 1310 和 1550nm±30nm 处为 ±0.5dB，平坦度在 1270 至 1600nm 为 ±0.2dB，700 至 1650nm 为 ±0.5dB，线性度为 ±0.3dB，偏振相关性在 1200 至 1600nm 为 ±0.5dB，1600 至 1650nm 为 ±1.0dB，显示分辨率为 0.01dB。
Product Description:

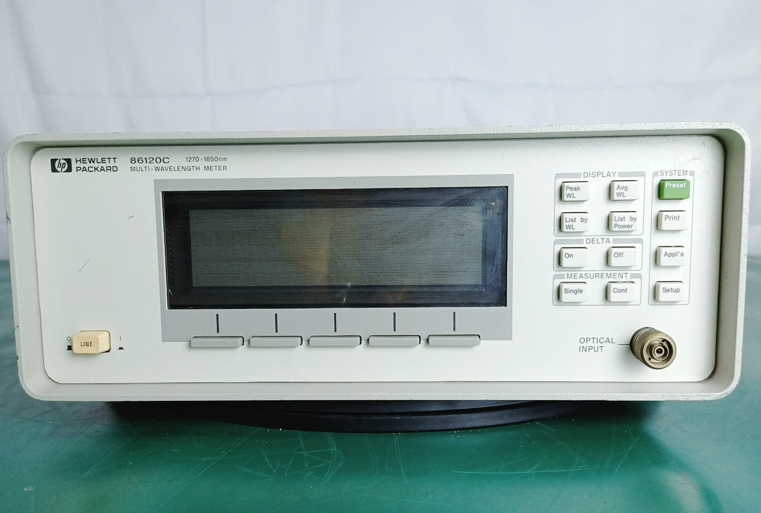

The Agilent 86120C multi-wavelength meter is a high-precision optical measurement instrument based on a Michelson interferometer. The Agilent 86120C multi-wavelength meter is mainly used for measuring the wavelengths and optical power of lasers within the wavelength range of 1270 to 1650nm. It can simultaneously measure up to 200 laser lines and can measure multiple longitudinal modes of DWDM signals and Fabry-Perot lasers. It is suitable for scenarios such as the development, manufacturing, installation, and verification of optical devices and optical networks.
Product features:
Wide wavelength measurement range: The wavelength measurement range is 1270 to 1650nm (182 to 236THz), which can meet the measurement requirements of various optical signals.
High measurement accuracy: Absolute accuracy is ±2ppm (laser line spacing ≥ 15GHz), at 1550nm and 1310nm it is ±0.003nm, differential accuracy is ±1ppm, wavelength resolution can reach 10GHz (1550nm is 0.08nm, 1300nm is 0.06nm), display resolution is 0.001nm.
Good power measurement performance: Calibration accuracy at 1310 and 1550nm is ±30nm ±0.5dB, flatness at 1270 to 1600nm is ±0.2dB, 700 to 1650nm is ±0.5dB, linearity is ±0.3dB, polarization correlation is ±0.5dB at 1200 to 1600nm, ±1.0dB at 1600 to 1650nm, display resolution is 0.01dB.
