Product Description

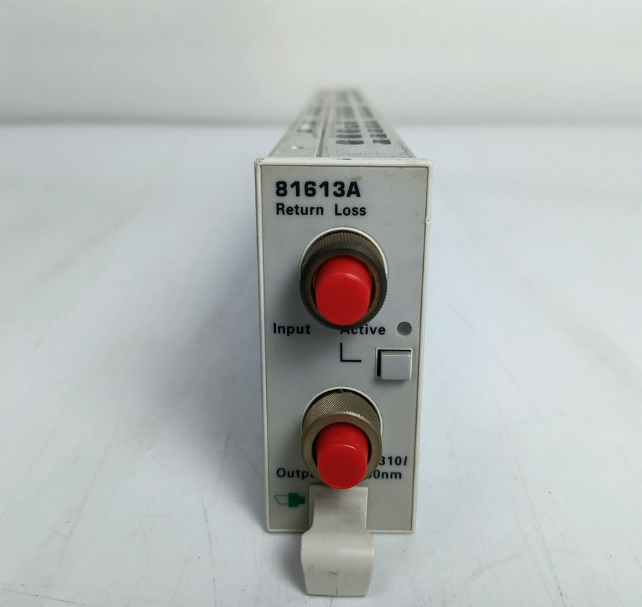

The Agilent 81613A is a Return‑Loss (RL) module for optical fiber component testing, intended for use with Agilent 8163, 8164, and 8166 series lightwave instruments. It plugs directly into the mainframe to measure return loss and insertion loss of single‑mode fiber devices. The module incorporates dual internal laser sources at 1310 nm and 1550 nm, together with a power‑monitor diode that simultaneously records incident and reflected power. It also accepts an external light source and is factory‑calibrated for plug‑and‑play operation
Key Features
Dynamic range: > 75 dB
Wavelength coverage: 1250 nm – 1640 nm, with built‑in 1310 nm/1550 nm dual lasers
Built‑in power monitor: real‑time monitoring of input and return power for high‑accuracy measurements
Uncertainty: ±0.2 dB when using a broadband laser source
Compatibility with 8163B mainframe: includes step‑by‑step guided operation wizard
Factory calibrated: calibrated parameters supplied, ready out‑of‑the‑box
External source support: external laser can be used across 1250 nm – 1640 nm for wavelength‑sweep RL measurements
