Product Description

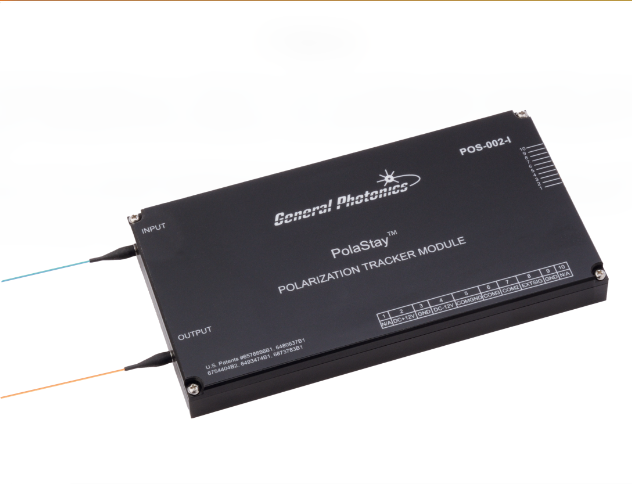

POS-002 adopts a fully solid-state design without any mechanical moving parts. It directly controls the polarization state switching with 4-bit TTL signals, enabling the SOP conversion of input polarized light for a fixed axis (with options of 45°/90°). It is compatible with SM/PM optical fibers (FC/APC interfaces), covering the entire wavelength range of 1260-1650nm. The typical insertion loss is 1.5dB, the reflection loss is ≥55dB, the switching time is as low as 45μs, and the self-preservation design has zero static power consumption. The size is 134.6×69.6×19.1mm. It has an industrial-grade temperature range (-10 to +60°C). It supports external triggering and automated integration, and is suitable for scenarios such as polarization modulation, PMD simulation, polarization detection and measurement.
Core feature
High-speed and precise switching: Typical switching time of 45 μs, high polarization state repetition accuracy, no mechanical wear, suitable for dynamic polarization testing and real-time monitoring.
Fully solid-state and stable and reliable: No moving parts, stable operation within the industrial temperature range, suitable for long-term deployment and applications in harsh environments.
Self-preservation zero power consumption control: Direct control with 4-bit TTL signal, self-preservation design ensures no loss of power-off state, zero static power consumption, suitable for low-power embedded systems.
