Product Description

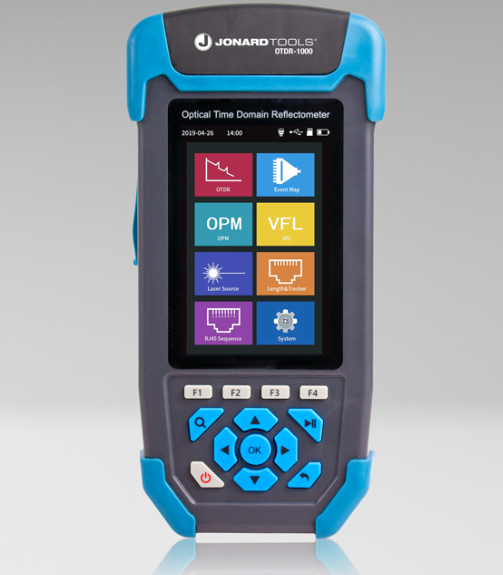

The Jonard Tools OTDR-1000 is a handheld multifunctional optical time-domain reflectometer (OTDR) integrated with 8 key functions, primarily designed for the construction and maintenance of FTTx and access networks. It enables accurate positioning of fiber breakpoints, measurement of optical cable length, and calculation of relative optical power loss, with a dynamic range of 24dB at 1310nm and 22dB at 1550nm, boasting excellent operational durability. Positioned as a portable all-in-one fiber testing platform for FTTx and access network scenarios, the OTDR-1000 supports the testing of single-mode fibers (G.652) and is compatible with wavelengths of 1310nm/1550nm±20nm, meeting the core requirements of fiber link construction acceptance, daily maintenance, and rapid fault location. It comes with a built-in 600MB storage (expandable via MicroSD card), a rechargeable lithium battery, and a Micro-USB port for both data transmission and charging, effectively addressing the endurance and data management needs of on-site operations. Moreover, it has passed independent testing to the ETL Listed standard, ensuring reliable performance.
Core Features
Multi-function Integration: Integrating 8 testing functions including OTDR, optical power meter, stable light source, fiber identifier, and VFL red light pen, it provides a one-stop solution for various testing and evaluation needs of optical fibers and network cables. Eliminating the need to carry multiple additional instruments, it significantly improves the efficiency of on-site operations.
Easy Operation & Data Viewing: Equipped with a 3.5-inch color LCD display, it ensures clear data presentation for quick evaluation of test results. Its straightforward operational logic lowers the learning threshold for novice users, facilitating fast proficiency in test operations.
