Product Description:

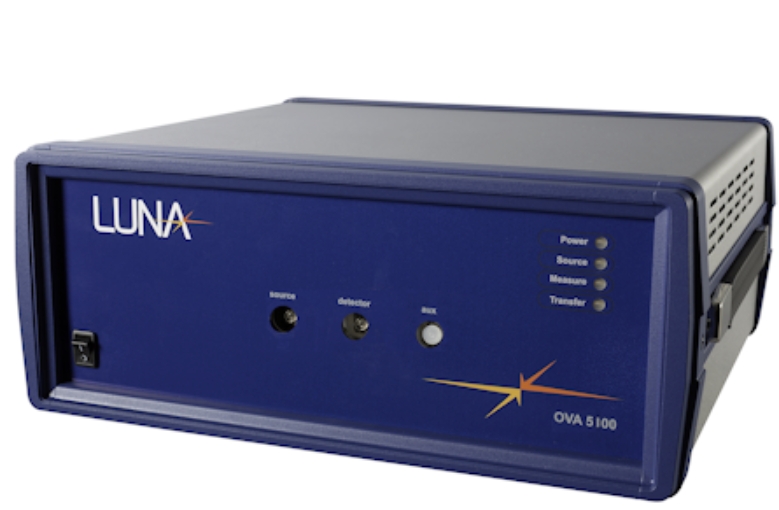

LUNA's OVA 5100 optical vector analyzer is a professional instrument designed for modern optical network equipment, specifically for measuring loss, dispersion, and polarization. It employs advanced interference measurement methods and can directly measure the linear transfer function (Jones matrix) of optical devices, thereby accurately extracting various standard linear parameters. This analyzer has powerful functions and is suitable for the full parameter characterization of a single connection of a series of optical components, including couplers, special fibers, fiber Bragg gratings, arrayed waveguide gratings, free-space filters, tunable devices, amplifiers, and so on.
Product Features:
Fast full-parameter analysis: It can complete the full parameter analysis of optical devices in a single measurement. The comprehensive characterization of passive devices can be accomplished in less than 3 seconds, significantly enhancing the testing efficiency. It is suitable for scenarios with high requirements for testing speed, such as batch production inspection.
Complete polarization response measurement: It can achieve complete polarization response measurement. In a single scan, it can simultaneously measure insertion loss (IL), polarization-dependent loss (PDL), polarization mode dispersion (PMD) and its second-order effect, dispersion (CD), group delay (GD), optical time-domain response, Jones matrix elements, and optical phase response, providing comprehensive data for the study of the polarization characteristics of optical devices.
