产品描述:
HXP51y2 是 Luna Innovations 旗下 T-Gauge® 系列的在线 EPG 太赫兹传感器头，专为工业级薄层高精度测量设计，相比标准款 HXC 50 yn 实现更薄测量极限，搭配 T-Ray® 5000 控制单元可完成分层产品单面精细化检测，适配工业过程控制、无损检测等多场景的非接触式测量需求。
核心产品特点
超精薄层测量能力：单一层最小可测 10 微米（如聚酰亚胺薄膜），埋入层最小 25 微米（如 EVOH、泡沫），突破传统传感器测量下限。
高性能硬件配置：搭载低损耗 TPX 透镜，支持 75/150mm 等多焦距定制；发射 / 接收器偏移设计提升性能，偏振消光比＞20:1，高带宽 + 高信噪比保障测量精度。
工业级环境适配：密封金属强化外壳，耐受工厂粉尘 / 污垢，工作温度 0-50℃、湿度 20-90% 无冷凝，1/4-20 螺纹孔便捷安装，整机仅 1.6kg、尺寸 128×70×178mm，小巧易部署。
Product Description:

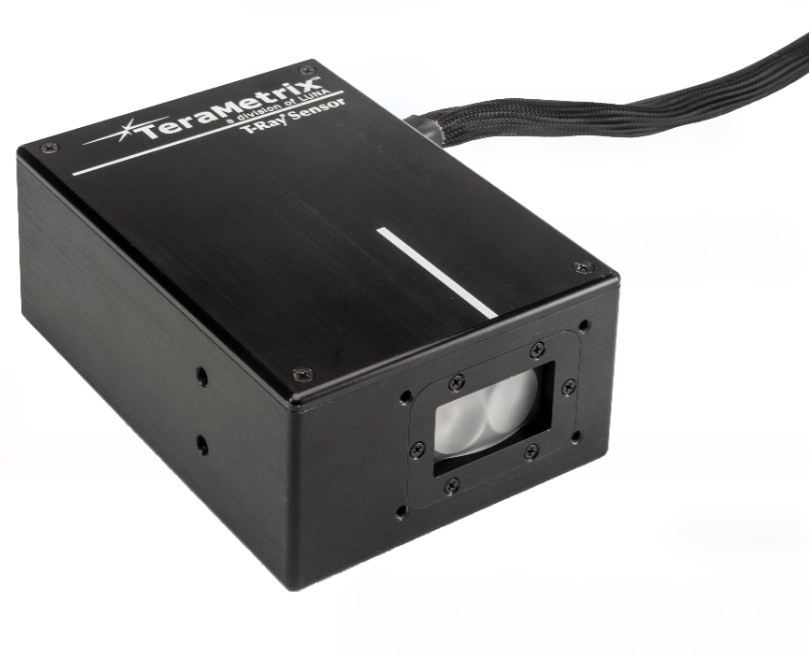

HXP51y2 is an online EPG terahertz sensor head of the T-Gauge® series under Luna Innovations. It is specially designed for industrial-grade thin-layer high-precision measurement. Compared to the standard model HXC 50 yn, it achieves a thinner measurement limit. When paired with the T-Ray® 5000 control unit, it can perform detailed single-side inspection of layered products. It is suitable for non-contact measurement requirements in various industrial process control, non-destructive testing, and other scenarios.
Core Product Features
Ultra-thin layer measurement capability: The minimum measurable thickness for a single layer is 10 microns (such as polyimide film), and for an embedded layer, it is 25 microns (such as EVOH, foam). This breaks through the traditional sensor measurement limit.
High-performance hardware configuration: Equipped with a low-loss TPX lens, it supports multiple focal lengths such as 75/150mm for customization; the design of the transmitter/receiver offset enhances performance, with a polarization extinction ratio of over 20:1, ensuring high bandwidth and high signal-to-noise ratio for measurement accuracy.
Industrial-grade environmental adaptability: A sealed metal reinforced casing, resistant to factory dust and dirt, with a working temperature range of 0-50℃ and humidity of 20-90% without condensation. It has 1/4-20 threaded holes for convenient installation, with the entire machine weighing only 1.6kg and measuring 128×70×178mm, making it compact and easy to deploy.
