描述：

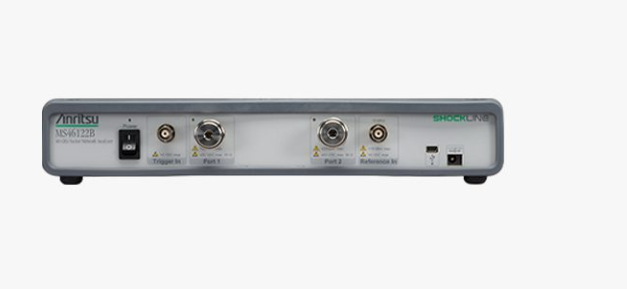

MS46122B 是包含三种 PC 控制的小型 ShockLine 矢量网络分析仪系列，频率范围为 1 MHz – 8/20/43.5 GHz。该系列采用 ShockLine VNA 芯片级技术，简化了内部 VNA 架构，提高了频率，降低了设备成本，加强了准确度和测量可重复性。
MS46122B 全系列产品都是低成本全反向 2 端口 VNA，专为制造、工程和教育领域的射频和微波应用而设计。所有三种 MS46122B VNA 的扫描速度均为每点 130 微秒，高于 100 dB 动态范围，适合各类设备测试应用。
这些全新 VNA 采用非常紧凑的 1U 机箱封装，通过连接用户 PC 上的 USB 可以实现外部控制，用户 PC 上需运行和 VNA ShockLine 系列其他产品相同的图形用户界面 (GUI) 软件。该系列没有任何机载内存，简化了其在应用中的使用。该 MS46122B 系列 VNA 成本更低、体积小巧且性能良好，是要求高性能和小尺寸的无源设备测试应用的理想选择。
主要功能：
Description:
MS46122B is a small ShockLine vector network analyzer family with three PC controls in the frequency range of 1 MHz -- 8/20/43.5 GHz. The ShockLine VNA chip-level technology simplifies the internal VNA architecture, improves frequency, reduces equipment costs, and enhances accuracy and measurement repeatability.
The full range of MS46122B products is a low cost full reverse 2-port VNA designed for RF and microwave applications in manufacturing, engineering and education. All three MS46122B Vnas have scanning speeds of 130 microseconds per point, which is higher than the 100 dB dynamic range and suitable for various equipment testing applications.
These new Vnas are packaged in a very compact 1U case with external control via a USB connection to a user PC running the same graphical user interface (GUI) software as other VNA ShockLine products. The series does not have any on-board memory, simplifying its use in applications. The MS46122B series VNA is lower cost, smaller size and good performance, making it ideal for passive device testing applications requiring high performance and small size.
Main Functions:
Guaranteed performance to 43.5GHz with Extended K™ ports
PC control effectively utilizes the processing power and functions of external computers.
Small 1U package makes efficient use of bench and rack space.
There is no on-board data storage and no need for data erasure in the application.
Time domain with time gating option can simplify and speed up fault identification.
The ShockLine series uses a common GUI interface to reduce conversion costs between models.
Universal Fixture Extraction (UFX) software options provide advanced de-embedding tools for test fixture extraction
