Product description

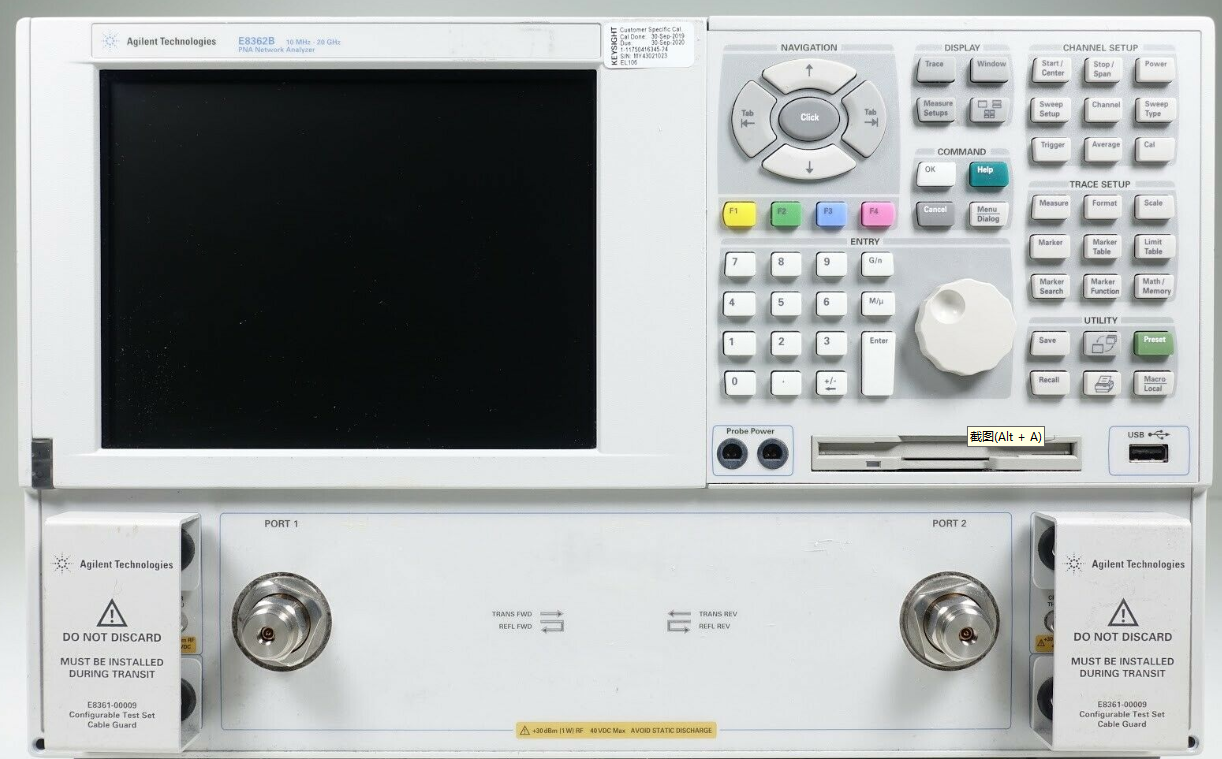

The E8362B 10 MHz to 20 GHz RF network analyzer is suitable for testing passive and active devices, such as filters and amplifiers. Users can easily add options to test mixers, harmonics, intermodulation distortion (IMD), pulsed RF, antennas, and millimeter wave (mmwave) components.
Product characteristics
High dynamic range: 127 dB at 20 GHz for the test port
Low line noise: 0.002 dB rms at 1 kHz bandwidth
Fast measurement speed: 4.5 to 26 microseconds/point
High stability: 0.05 dB/C
State-of-the-art calibration features and various ECal modules
Advanced applications for mixers and pulse measurement
Single ended and balanced measurement
32 measurement channels, unlimited traces and 16,001 points per channel
Connectivity with Open Windows XP, 6 USB connectors, LAN and GPIB
