Description:

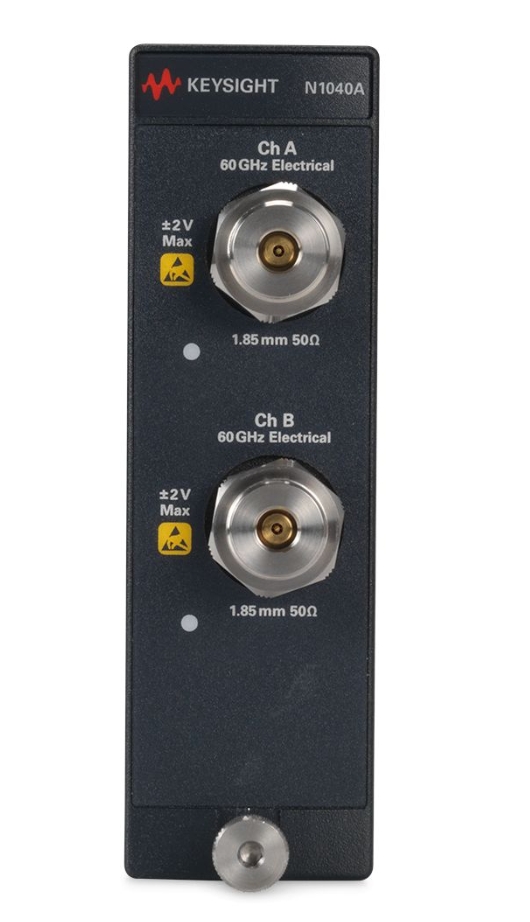

N1040A is a high-performance dual-channel electrical test module launched by Keysight Technologies, mainly used for high-speed digital signal and electrical communication tests. It is applicable to applications such as high-speed SerDes, PCIe, DDR, 400G/800G Ethernet electrical interfaces, etc. It can be used in conjunction with Infiniium UXR series oscilloscopes (such as UXR1104A), providing high-precision and low-noise electrical signal acquisition capabilities.
Features:
The bandwidth is up to 60 GHz and the jitter is as low as 90 fs
Flexibility: You can choose the maximum bandwidth of 33 GHz or 60 GHz
Low test cost: Up to 8 channels per host, providing high throughput
Protect your investment: It can be used in conjunction with the N1000A (250 kSa/s sampling rate) and 86100D (40 kSa/s sampling rate) hosts
Ultra-high bandwidth and high sampling rate meet the requirements of high-speed signal testing
Electrical bandwidth: Each channel supports up to 70 GHz and can accurately analyze high-speed electrical signals (such as 112G PAM4).
Sampling rate: 256 GSa/s per channel (real-time sampling), ensuring high-fidelity waveform capture.
Dual-channel synchronous measurement enhances test efficiency
It features two independent electrical input channels, supporting time-aligned measurement, and is suitable for differential signal, multi-channel system or high-speed digital bus analysis.
The isolation between channels is high (>30 dB), reducing crosstalk and ensuring measurement accuracy.
Low noise and high dynamic range, suitable for harsh testing environments
Ultra-low background noise, capable of measuring weak electrical signals (as low as 1 mV/div).
Wide dynamic range (± 2.5V full scale), suitable for high/low voltage scenarios.
Supports multiple signal standards and covers mainstream electrical interface testing
Compatible with high-speed interface standards such as NRZ, PAM4, PCIe 5.0/6.0, DDR5, USB4, and Thunderbolt.
