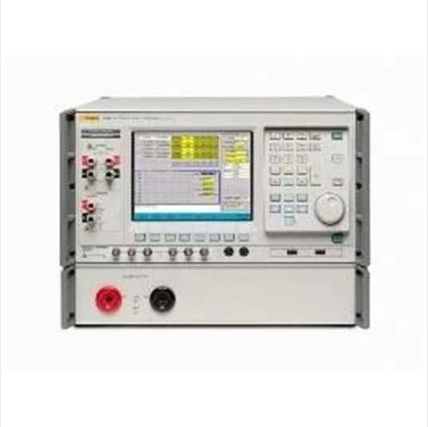

The Fluke 6100B is an instrument for power quality calibration, capable of providing various electrical signals and electrical phenomena required for tasks such as power quality testing and calibration. The following are its features:
- High accuracy: The generated voltage and current have a resolution of 6 digits, with an accuracy value less than 0.005% (50ppm). The phase accuracy is also relatively high, reaching 0.003°.
- Rich functions: It can reproduce power waveforms, distortion events, and various electrical phenomena such as harmonic distortion, modulated harmonics, inter - harmonics, flicker, and voltage surges and sags. These phenomena can occur simultaneously. It also offers a power calibration option, supporting the standard - meter method and the watt - second method, and is equipped with various debugging methods.
- Strong output capacity: It can provide a pure sine voltage of up to 1008V and a pure sine current of up to 21A. The voltage terminal can provide a power of up to 50VA, and the current output terminal can provide a compliance voltage of up to 14V peak, ensuring reliable current transmission in cases of long cables, connectors, and switches.
- Flexible number of phases: It supports single - phase, two - phase, three - phase, and four - phase systems. It can start from a single - phase system and increase the number of phases as needed. The main unit can output single - phase voltage, current, and various power phenomena. Each additional phase auxiliary unit also has the same functions and flexible phase - angle control capabilities.
- Easy to operate: The system control program is based on the Microsoft Windows graphical user interface. It can be operated through a combination of front - panel knobs and buttons or by connecting a mouse and keyboard. Various status information and detailed parameter information can be observed on the 8 - inch TFT display. It can also display the frequency - domain and time - domain characteristics of the current signal type. There is a context - sensitive help window at the bottom of the screen.
- Complete interfaces: It complies with the IEEE 488.1 standard and the supplementary IEEE 488.2 standard, and its programming language is compatible with the Standard Commands for Programmable Instruments (SCPI), enabling remote control. It is also equipped with six input ports to receive power measurement pulses, allowing the calibration of six watt - hours meters simultaneously or the reception of each phase input of a multi - phase watt - hour meter. In addition, there is a CLK reference clock option that provides various reference signals.
