Product Description:

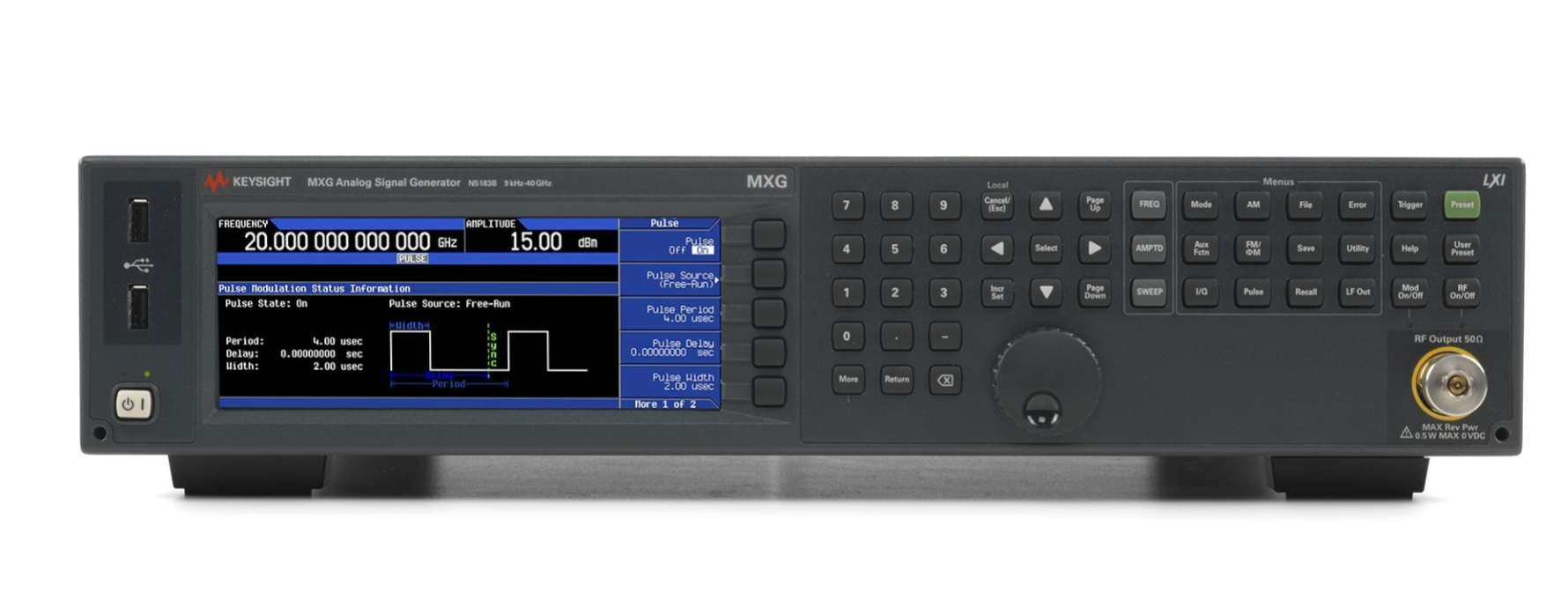

The N5183B MXG X series microwave analog signal generator offers a frequency coverage range from 9 kHz to 40 GHz and phase noise performance close to the PSG level, and has advantages in terms of size and speed.
Product Features:
Get a fast, compact (2U) alternative to PSG in the laboratory, warehouse or on-site
It meets the demanding tests of radar modules and systems and has spectral purity close to the PSG level
Compensate for system losses and drive high-power amplifiers: +19 dBm output power, -55 dBc harmonics and -68 dBc spurious @ 20 GHz
The switching speed is 600 μs, reducing the calibration time
Simulate narrowband chirp and radar antenna scanning using up to five internal function generators, which can be used in conjunction with AM, FM, and OM pulse modulation.
