产品描述：

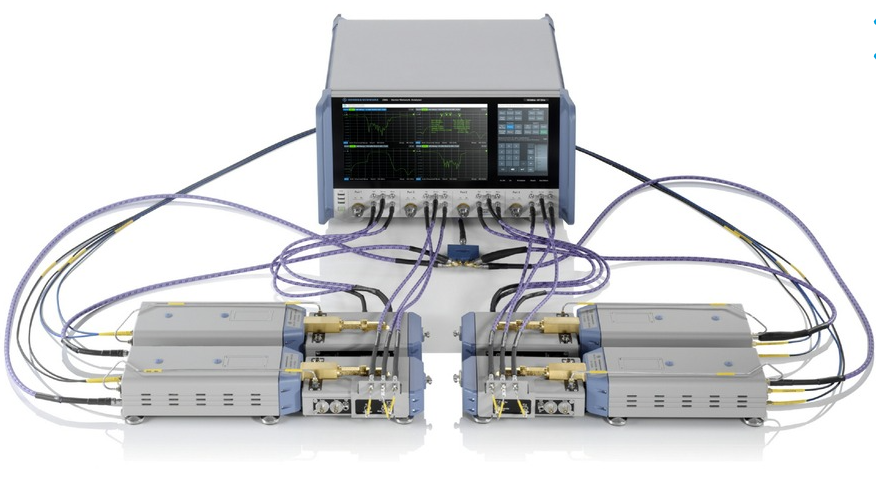

R&SZNA67EXT 是一款 1.0 mm 矢量网络分析仪系统，覆盖 10 MHz 至 110 GHz 的频率范围。R&SZNA67EXT 矢量网络分析仪系统由一台 R&SZNA67 矢量网络分析仪和最多四台外部测试装置组成。
产品特点：
Product Description:
The R&SZNA67EXT is a 1.0 mm vector network analyzer system that covers the frequency range from 10 MHz to 110 GHz. The R&SZNA67EXT Vector Network Analyzer system consists of one R&SZNA67 vector network analyzer and up to four external test units.
Product features:
1. Ultra-wide frequency coverage and expansion capability
Frequency range: The base band covers 10 MHz to 67 GHz, and can be upgraded to 110 GHz with expansion modules to support test requirements in the millimeter and terahertz fields.
Application scenario: It is suitable for signal integrity analysis of 5G/6G communication, satellite communication, radar system, high-speed interconnect (such as 224 Gbps copper cable bundle).
2. Excellent RF performance
Dynamic range: up to 120 dB for accurate measurement of high-blocking devices such as amplifiers.
Output power: up to 10 dBm, combined with low track noise design, provides high SNR measurement results.
Stability: Excellent temperature stability and long-term reliability, supporting long time high-precision testing.
3. Powerful multi-port parallel testing capability
Hardware configuration: Built-in four-way fully coherent signal source and eight-way parallel receiver, support dual port or four-port test, can synchronously measure multiple parameters (such as S-parameter, insertion loss, return loss).
Scalability: Support the fifth signal source as a local oscillator or additional signal source, flexible response to mixer, inverter test requirements.
4. Advanced signal analysis and calibration technology
Time-domain/frequency-domain analysis: Provides enhanced time-domain analysis (TDR), eye simulation, and unembedding capabilities to support in-fixture and PCB-level testing.
Calibration solution: Support mechanical calibration, automatic calibration unit and in situ calibration data update, simplify the calibration process for complex test scenarios.
