Product Description:

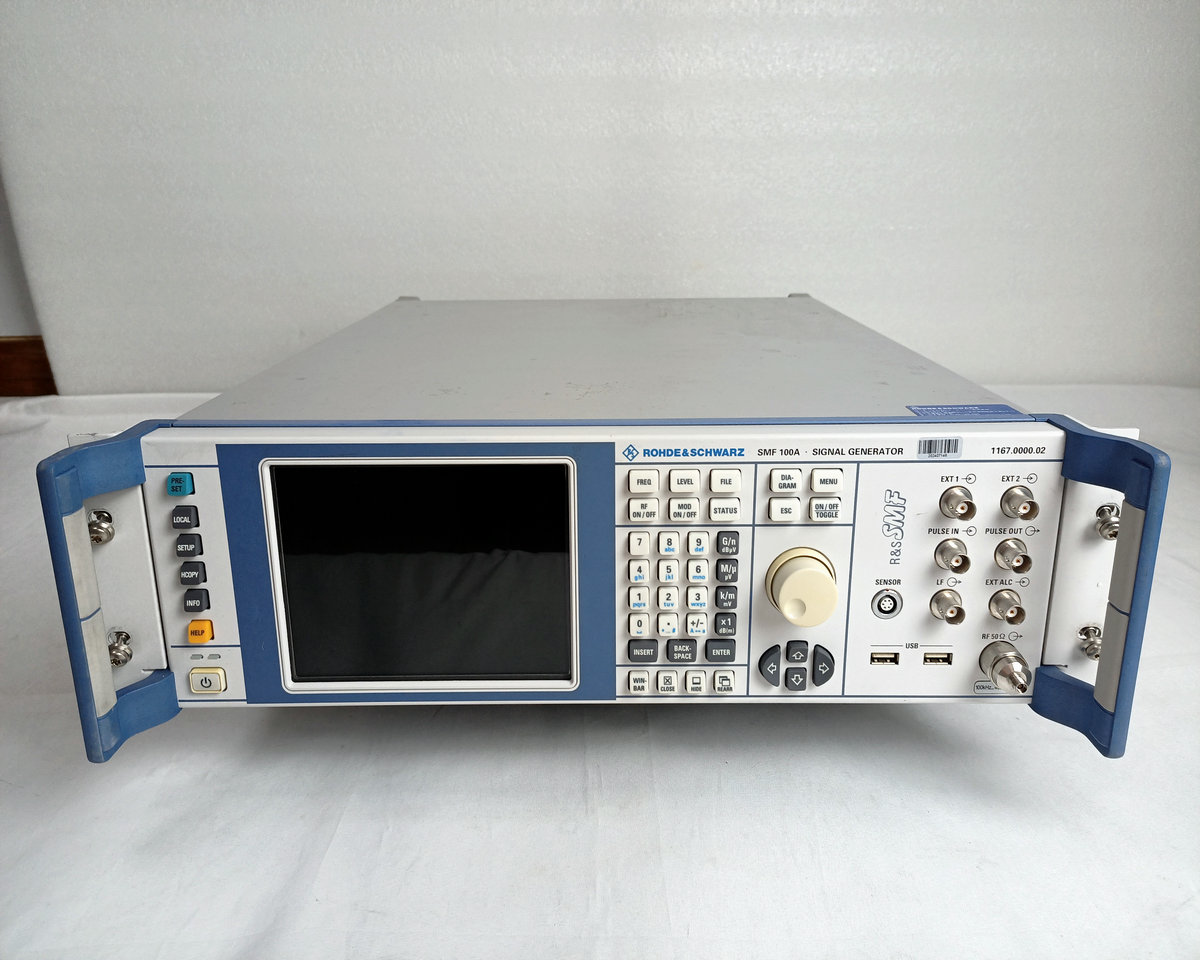

The Rohde & Schwarz SMF100A Microwave Signal Generator has a frequency range of 100 kHz to 43.5 GHz with 0.005 % of span (sweep time/s) accuracy. The Rohde & Schwarz SMF100A can achieve exceptional signal quality, speed, and flexibility in the microwave range. The unit highlights an excellent SSB phase noise of –120 dBc at 10 GHz (typical) carrier offset. The R&S®SMF100A generates all common types of analog modulation, such as AM, broadband FM, φM, and pulse modulation. The R&SSMF100A is ideal for R&D, production, service, maintenance, and repair applications, and the device is designed to be utilized in a wide range of industries, including aerospace and defense testing.
Features:
-
Max. frequency range from 100 kHz to 43.5 GHz
-
Frequency, level, and LF sweeps
-
Excellent SSB phase noise of typ. –120 dBc (at 10 GHz; 10 kHz carrier offset)
-
High output power of typ. +25 dBm
-
AM, broadband FM, φM, pulse modulation
-
Remote control via GPIB, Ethernet, or USB
-
Innovative block diagram operation
-
Two multifunction generators up to 10 MHz
-
Usable for scalar network analysis with R&S®NRP-Zx power sensor connected
-
The pulse generator can generate pulse trains for radar testing (R&S®SMF-K27 option)
