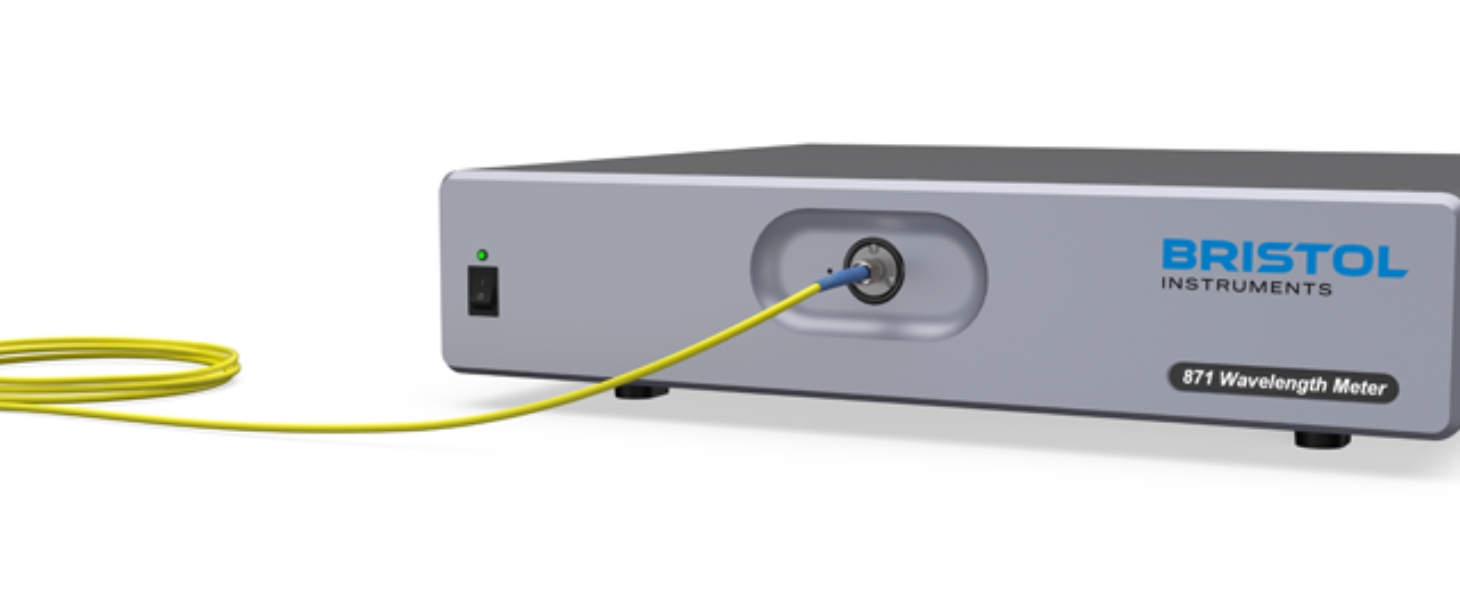

871 系列激光波长计采用成熟的基于 Fizeau 标准具的设计，可测量工作范围为 375 nm 至 2.5 μm 的脉冲激光器和连续激光器的波长。
871A 型是最精确的，测量波长的精度为 ± 0.2 ppm（± 500 nm 处为 0.0001 nm）。对于不太精确的实验，871B 型是一种价格较低的替代方案，精度为 ± 0.75 ppm（在 1500 nm 处± 0.001 nm）。
使用内置波长标准品进行自动校准可保证此性能，以确保获得最有意义的实验结果。
871 激光波长计的 Fizeau 标准具产生空间干涉图，由快速光电探测器阵列检测。板载数字信号处理器可快速将干涉数据转换为波长。由于此计算是在仪器内完成的，因此可实现高达 1 kHz 的持续测量速率。
871 激光波长计可以测量以 ≤ kHz 的重复频率工作的激光器的每个脉冲的波长。在更高的重复频率下，该系统对到达测量窗口内的所有激光脉冲进行积分。此外，该系统的 1 ms 时间分辨率提供了可调谐激光器最详细的波长表征和激光波长稳定的快速反馈。
871 激光波长计与通过 USB 或通过以太网通过局域网直接连接的 PC 配合使用。提供软件来控制测量参数和报告波长数据。
由于波长是使用板载数字信号处理器计算的，因此 871 激光波长计可以使用命令库直接集成到实验中，以进行自定义或 LabVIEW 编程。这消除了对专用 PC 的需求，并支持使用任何作系统。
More confident in the results of the experiment
The 871 series laser wavemeter uses a proven Fizeau standard-based design to measure the wavelength of pulsed and continuous lasers operating from 375 nm to 2.5 μm.
Type 871A is the most accurate, measuring wavelengths with an accuracy of ± 0.2 ppm (0.0001 nm at ± 500 nm). For less precise experiments, Type 871B is a less expensive alternative with an accuracy of ± 0.75 ppm (± 0.001 nm at 1500 nm).
Automatic calibration with built-in wavelength standards guarantees this performance to ensure the most meaningful experimental results.
The fastest continuous measurement rate
The Fizeau standard of the 871 laser wavemeter produces a spatial interferogram that is detected by a fast photodetector array. The onboard digital signal processor can quickly convert the interference data to wavelength. Since this calculation is done within the instrument, continuous measurement rates of up to 1 kHz can be achieved.
The 871 laser wavemeter can measure the wavelength of each pulse of a laser operating at a repetition rate of ≤ kHz. At higher repetition rates, the system integrates all laser pulses that arrive within the measurement window. In addition, the system's 1 ms temporal resolution provides the most detailed wavelength characterization of tunable lasers and rapid feedback on laser wavelength stabilization.
Make it simple
The 871 laser wavemeter works with a PC directly connected via USB or via Ethernet over a LAN. Provides software to control measurement parameters and report wavelength data.
Since the wavelength is calculated using an onboard digital signal processor, the 871 laser wavemeter can be used
