Product introduction:

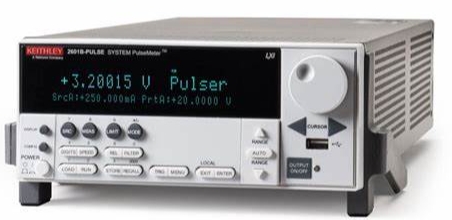

With the 2601B-PULSE control loop system, load variations up to 3μH are not manually adjusted to ensure that pulses from 10 μs to 500 μs are output without overshot or oscillation at any current level (up to 10 amps). Pulse rise time < 1.7μs ensures that you can correctly verify the device or circuit under test.
Features:
Channels: 1
Power: 200 W
Max Current Source/Measure Range: 10A
Max Voltage Source/Measure Range: 40V
Measurement Resolution (Current / Voltage): 100fA / 100nV
Tightly integrated, 4-quadrant voltage/current source and measure instruments offer best in class performance with 6½-digit resolution
Built-in web browser based software enables remote control through any browser, on any computer, from anywhere in the world
Compatibility with the Keithley IVy mobile app enables true plug & play I/V characterization and test through any Android device
TSP (Test Script Processing) technology embeds complete test programs inside the instrument for bestin- class system-level throughput
TSP-Link expansion technology for multi-channel parallel test without a mainframe
Software emulation for Keithley’s 2400 SourceMeter SMU Instrument
