Product Overview:

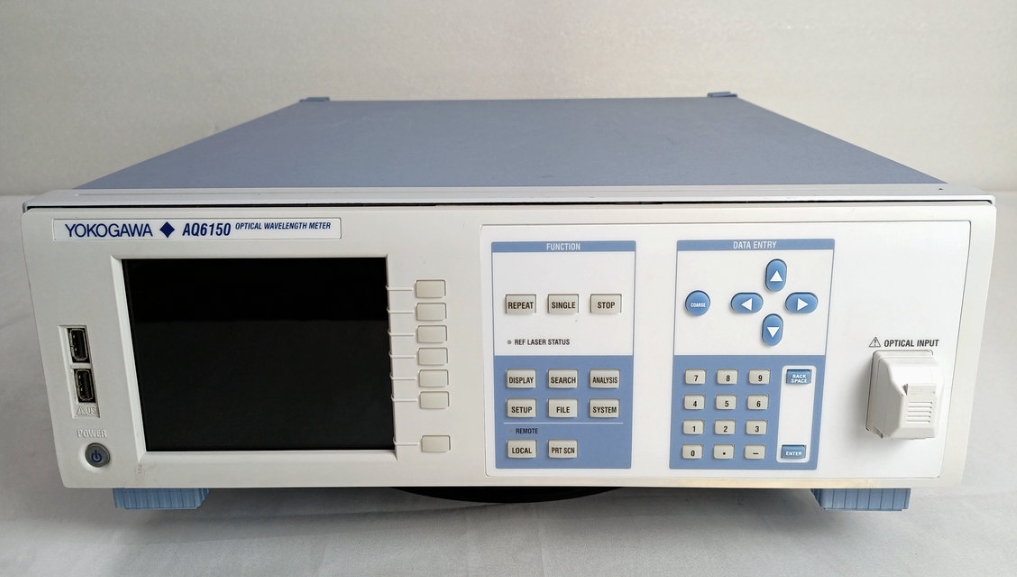

The AQ6150 series optical wavelength meters are ideal instruments for accurately measuring optical devices and systems used in telecommunication applications at optical wavelengths from 1270 to 1650 nm, including the C&L band. By using Michelson interferometer and fast Fourier transform (FFT) algorithm, AQ6150 series can measure not only single wavelength laser signal, but also multi-wavelength laser signal from DWDM system and Fabry Perot laser. Moreover, in addition to the CW signal from the optical transceiver, the technique can also measure the modulated laser signal. Optimized optical design and data processing procedures significantly shorten the measurement time and improve the overall manufacturing process.
Features:
Wavelength accuracy :±1pm
The optical output of the optical transceiver and optical transmission system is modulated at transmission frequencies such as 10G and 40Gbps
The AQ6150 series is equipped with Automatic Gain Control (AGC), which automatically adjusts the gain of the electrical amplifier according to the input signal power
Simultaneous, fast, and accurate measurement of up to 1024 wavelengths with a minimum interval of 5GHz in a single input signal
In repeated measurement mode, the AQ6150 series can collect up to five measurements per second
