Product Description:

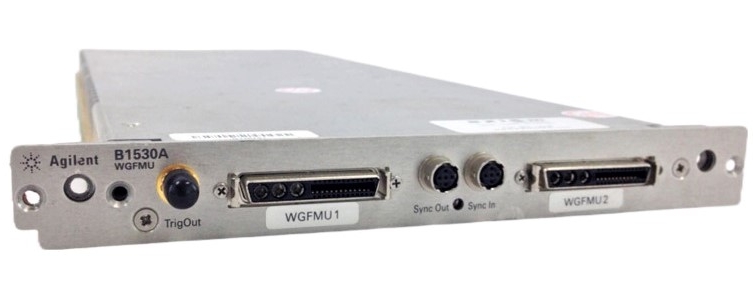

Ultrafast IV, pulse IV, and instantaneous IV measurements are becoming a common requirement for the development of next-generation semiconductors, devices, and materials. The Keysight B1530A waveform generator/Fast Measurement Unit (WGFMU) in the Keysight B1500A series is the best measurement module for these time-dependent measurements. These measurements are usually made by a combination of pulse generators and oscilloscopes, but load line effects (voltage drop errors due to residual resistance) can adversely affect measurement accuracy. The B1530A WGFMU combines the arbitrary waveform generation function and has good application in high-speed IV measurement. Keyview's unique dynamic SMU technology eliminates load-line effects and enables users to perform more accurate and sensitive measurements than pulse generator-based solutions. The instrument is ideal for performing ultrafast IV measurements, pulsed IV measurements, and instantaneous IV measurements, such as ultrafast NBTI and RTN measurements.
Product Features:
Supports fast, highly sensitive IV (current-voltage) measurements, pulse IV measurements, and instantaneous IV measurements for a variety of applications, such as NBTI/PBTI and RTN (random telegraph signal noise)
Can generate arbitrary waveform, programming resolution of 10 ns (except DC output)
Simultaneous performance of high-speed IV measurements (up to 200 MSa/ SEC)
Highly sensitive measurement with an accuracy of 1 nA
With Keysight's unique dynamic SMU technology, the load line does not affect the accuracy of pulse IV measurements
10V peak-to-peak output
The dynamic range adjustment feature of arbitrary waveform output enables a wider current range
Dual channel output
