Product Description:

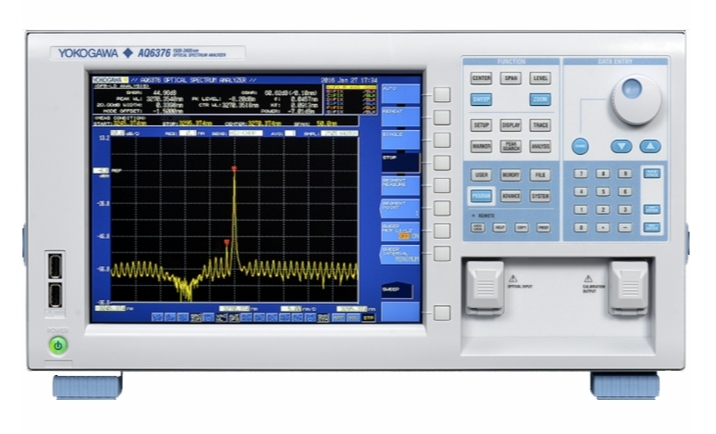

The AQ6376 is the latest version of our benchtop spectrum analyzer, extending wavelength coverage from the NIR range of our previous models to the MWIR region of 1500 to 3400 nm.
A wide range of applications include the detection of gases such as carbon oxides (COx), nitrogen oxides (NOx) and hydrocarbon gases (CxHy) in environmental studies.
Similar to the long-wavelength models, it offers the added benefit of a gas purge input/output port, a built-in cut-off filter for high-order diffracted light, and a novel double-speed mode that delivers up to 2x faster scanning speeds compared to standard scanning modes.
Features:
Long wavelength range: 1500 to 3400 nm
Gas purge ports to reduce the effect of water vapor
Built-in cut-off filter for high order diffracted light
The double speed mode further increases the fast measurement speed
Sensitivity as low as -65 dBm
Resolution up to 0.10 nm
Wide short-range dynamic range (55dB)
Fast automatic calibration
Free space light input for maximum flexibility, low maintenance and high reliability
Suitable for single mode and multi-mode fiber
