Product introduction:

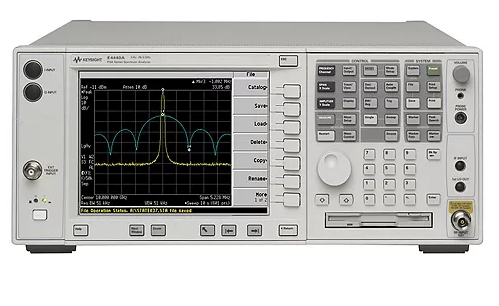

E4446A delivers high-performance spectrum analysis up to 44 GHz with a powerful one-click measurement capability, a generic feature set and a leading-edge combination of flexibility, speed, accuracy, analytical bandwidth and dynamic range. From millimeter wave and phase noise measurements to excitation search and modulation analysis, Keysight(Agilent)E4446A 3hz to 44 GHz PSA spectrum analyzer provides a unique and comprehensive high-performance solution for R&D and manufacturing engineers in the cellular and emerging wireless communications, aerospace and defense sectors.
Features:
-
+/-0.19 dB absolute amplitude accuracy
-
-154 dBm Display average noise level (DANL)
-
Phase noise at 10khz offset
-
81 dB W-CDMA ACLR dynamic range
-
10mhz analysis bandwidth (basic mode B7J)
-
The optional 40 or 80 MHZ analytical bandwidth captures and measures complex signals.
-
-78 dB(nominal) third-order intermodulation for 40 or 80 MHz analysis bandwidth
-
Up to 300mhz analysis bandwidth calibration for VSA measurements
