Product Description:

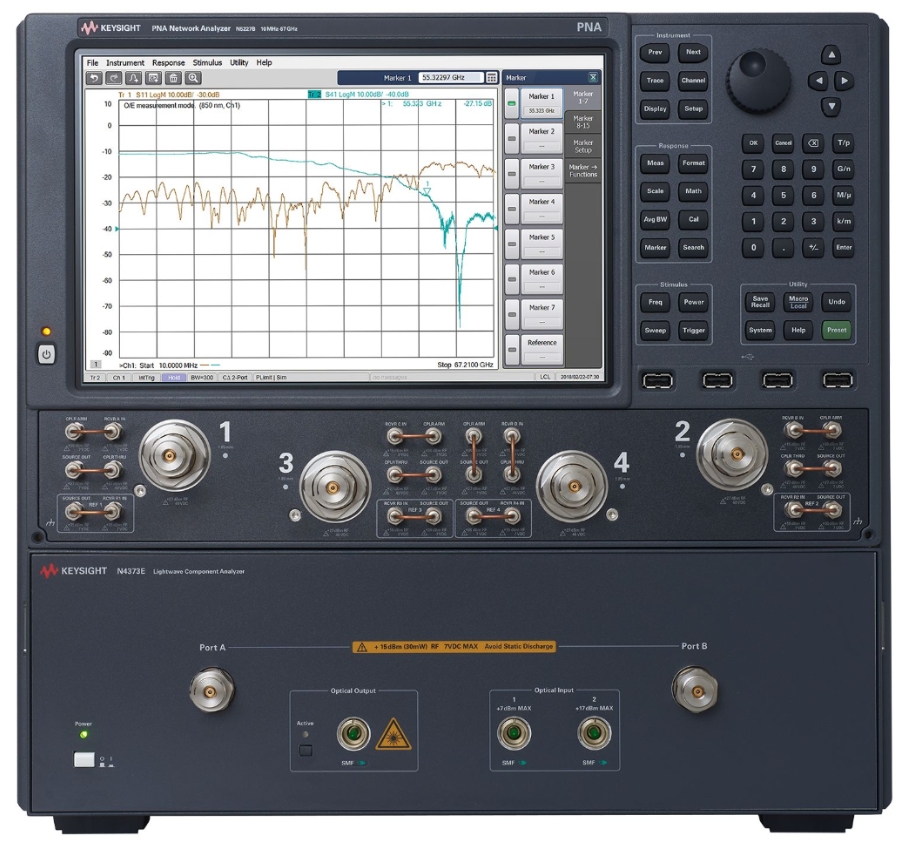

The new Keysight N4373E optical Wave device analyzer offers the latest N5224B, N5225B, and N5227B network analyzers in 2 - or 4-port configurations. This LCA is the ideal solution for testing electro-optic components up to 67 GHz. It is also suitable for testing 40G/100GbE, 400Gbit/s and 1 Tbit/s coherent transmission systems, fiber optic radio (RoF), and electro-optic components in aerospace and defense (A&D) electro-optic test applications.
The N4373E is a complete electro-optical S-parameter measurement solution with accuracy traceable to international standards and guaranteed technical specifications. The user calibration procedure based on the N4694A Electronic calibration Kit is highly automated and helps the user to quickly complete the measurement preparation without the need for optical device calibration. This instrument guides users through calibration and measurement Settings, significantly increasing productivity.
Features:
Absolute frequency response accuracy
< 0.9 dBe at 50 GHz (typical value)
< 1.3 dBe at 67 GHz (typical value)
Relative frequency response accuracy
< 0.5 dBe at 50 GHz (typical value)
< 1.3 dBe at 67 GHz (typical value)
Background noise
< -59 dB (W/A) at 67 GHz (electro-optical measurement)
< -55 dB (A/W) at 67 GHz (photoelectric measurement)
Other advantages
An optional secondary input is available for performing tests with wavelengths between 1290 nm and 1610 nm using an external laser source
A built-in average power meter quickly verifies transmitter power and indicates conditions such as interruptions, bending and poor connections
Programming interface based on.NET or COM and SCPI
The user can choose the optical transmitter output power to better adapt to the target test conditions
The new model is suitable for testing 850 nm devices with bandwidths up to 50 GHz
