Product introduction:

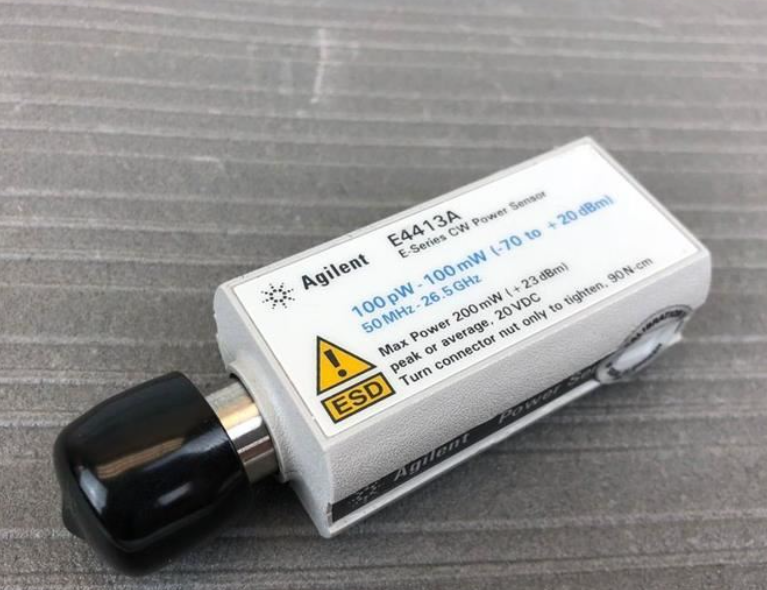

The E4413A CW power sensor measures average power in the frequency range of 50 MHz to 26.5 GHz and in the power range of -70 to +20 dBm (90 dB dynamic range).
Features:
-
Fast measurement speed, up to 400 readings per second when using E4416A
-
Wide dynamic range (-70 dBm to +20 dBm)
-
Frequencies range from 50 MHz to 26.5 GHz, up to 33 GHz with special options
-
Calibration coefficient, linearity and temperature compensation data are stored in EEPROM
-
Excellent standing wave ratio can reduce the uncertainty of mismatch
-
Traceability to NIST's precision calibration capabilities
-
It is compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P series (N1911A/ 12A) power meters
