Product Description:

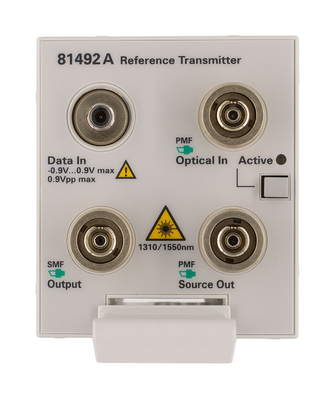

The 81492A Keysight reference transmitter is designed to provide excellent eye image quality for NRZ and PAM4 signals at baud rates up to 56 Gbaud and can be used as a general-purpose single-mode E/O converter. In addition to internal lasers at 1310 and 1550 nm, an external optical input is available for a tunable laser source. It is fully integrated into Keysight's optical receiver limit test solution to meet the test requirements of IEEE 802.310, 40, 100 and 400GBASE optical standards.
Features:
-
Typical electro-optical bandwidth of 40 GHz @ 1310 nm GHz
-
Optical wavelength :1310nm & 1550nm single-mode fiber
-
Ascent and descent times: typically less than 9 seconds
-
Jitter :< 400ps rms or < 6.5 ps p-p typical
-
TDEC is suitable for 53.125 Gb/s NRZ: < 1.5 typical, 1310 nm
-
TDECQ of 53.125 Gbaud PAM4: < 2.4 typical, 1310 nm or < 2.1 typical, 1550 nm
