Product Description:

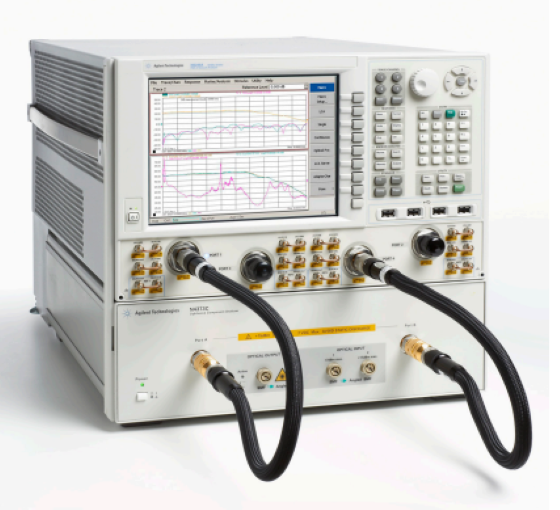

With a modulation frequency range up to 67 GHz and excellent accuracy, the N4373C performs S-parameter testing of electro-optical components of transmission systems according to IEEE 802.3ba standards, and supports optical wireless communications (RoF) and aerospace and defense (A&D) applications in the 60 GHz frequency range.
By using the N4373C to test the S-parameters of electro-optical devices, you can achieve the fastest time to market and focus on developing high-performance components.
By using a fast, simple measurement setup, time-consuming electronic calibration steps are automatically performed and the operator does not need to perform optical calibration, resulting in significant efficiency gains.
Features:
Balanced measurement capability up to 67 GHz (latest)
Tests are performed in the full wavelength range of 1300 ~ 1600 nm using an external light source input
1310 and 1550 nm selectable internal transmitters with support for IEEE 802.3ba component testing
The built-in average power meter enables quick transmitter power testing
User-selectable optical transmitter output power helps you adapt to target test conditions
The test speed is more than 10 times faster than the 86030A, which improves productivity
Absolute frequency response accuracy
At 50 GHz, ± 1.2 dB (typical)
At 65 GHz, ± 1.8 dB (typical)
Relative frequency response accuracy
At 50 GHz, ± 0.8 dB (typical)
At 65 GHz, ± 1.3 dB (typical)
Background noise
At 50 (65) GHz, the background noise measured by O/E is -60 (55) dB (A/W)
At 50 (65) GHz, the background noise measured by E/O is -64 (59) dB (W/A)
