Product Overview:

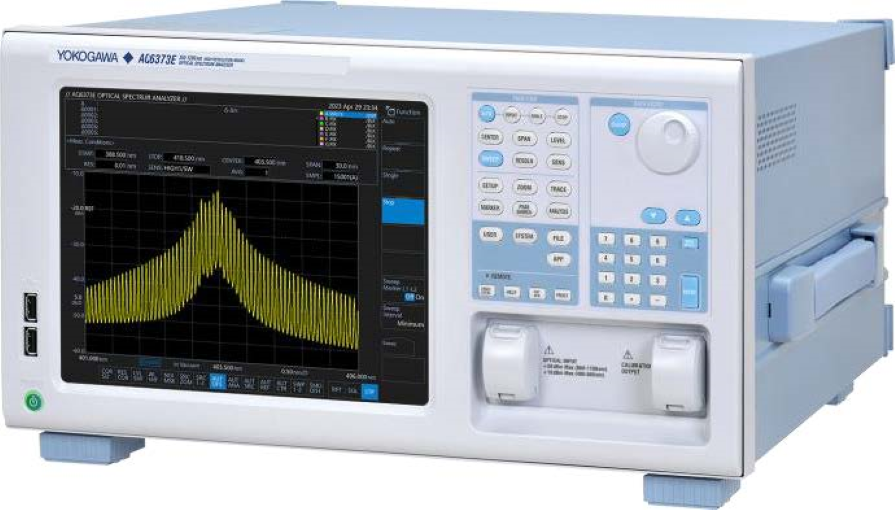

AQ6373 is the latest product of the AQ6370 series of optical spectrum analyzers, capable of high-speed and precise analysis of short-wavelength light ranging from 350nm to 1200nm, and is suitable for various fields. AQ6373 can accelerate the development and production of short-wave lasers, passive components, LEDs, and devices using these components (for biomedical, materials processing, consumer goods, and telecommunications markets, etc.). AQ6373 is equipped with an in-built color analysis function, and its remote commands are compatible with AQ6315, providing existing AQ6315 users with higher-level functionality, speed, and performance.
Product Features:
Wavelength range: 350~1200nm
Wavelength accuracy: ±0.05nm
Wavelength resolution: 0.02~10nm and 0.01nm (400~470nm)
Maximum safe input power: +20dBm
Power sensitivity: -80dBm
Dynamic range: ≥60dB
Single-mode, multi-mode and large core optical fibers
Built-in optical axis alignment adjustment light source
Wavelength calibration through external reference source
Equipped with multiple analysis functions, including VIS color analysis function.
