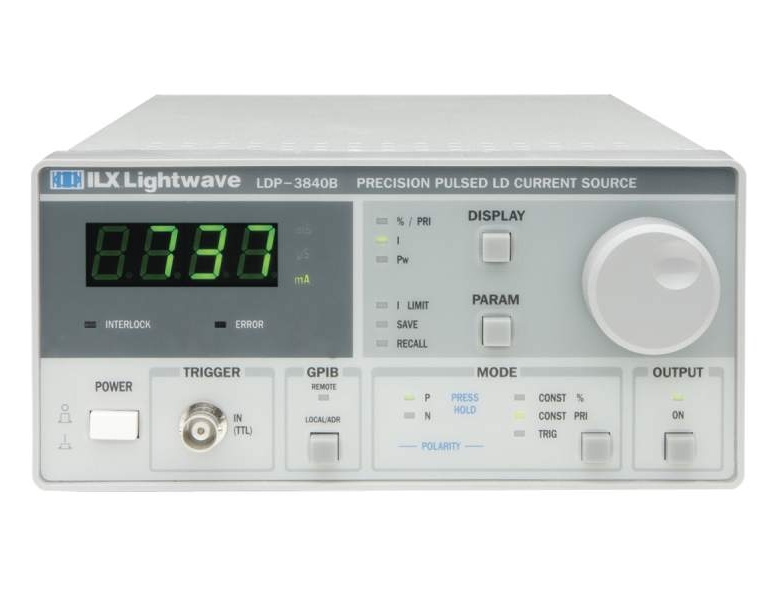

LDP-3840B精密脉冲激光二极管是专为脉冲测试和表征激光二极管设计的一款基于微处理器的设备。LDP-3840B提供了高达3的峰值脉冲电流，从100 ns到10ms的可调节脉冲宽度。
激光二极管负载水平的干净脉冲的精心设计，提供了具有快速上升时间的低噪声脉冲电流，同时将过冲保持在5％以下。LDP-3840B可以通过GPIB/IEEE接口实现自动测试和表征。
对于基本的系统集成，无需命令程序，使用触发器即可控制脉冲并启动相应的测量。像所有ILX Lightwave®激光二极管控制仪器一样，LDP-3840B具有激光二极管保护和安全功能，例如电流限制、输出短路、AC线路滤波器和双屏蔽变压器，以帮助抑制激光破坏性的瞬变。对于虚拟仪器编程，免费提供LabVIEW®仪器驱动程序。LabVIEW®仪器驱动程序可以从本页的文献与下载选项中下载。LDP-3840B的电源要求为100-120 VAC。
仪器包括：
我们提供了多种精密激光二极管安装座，与我们的激光二极管仪器有即插即用的兼容性。
LDP-3840B 的核心是一个精密脉冲电流源，提供具有低过冲和快速上升和下降时间的净脉冲。3840B 的低噪声、瞬变抑制输出专为激光二极管负荷电平而设计。对脉冲宽度、占空比和频率采用数字控制，提供了快速简便的脉冲参数控制，从而在各种测试应用中最大程度提高灵活性。为了在 LIV 应用中准确监测激光驱动器参数，激光二极管安装板提供 50 欧姆终端电阻，以监测电压和电流。
LDP-3840B 最重要的特性之一是 ILX Lightwave 经过验证的激光二极管保护功能，包括电流限制和冗余输出短路电路。在上电期间，通过仔细接通序列来保护激光二极管免受电流瞬变的影响。交流线路滤波器和双屏蔽变压器在激光器操作期间提供进一步的瞬变保护。
LDP-3840B Precision Pulsed Laser diode is a microprocessor-based device designed for pulse testing and characterization of laser diodes. LDP-3840B offers up to 3 peak pulse currents with adjustable pulse widths from 100 ns to 10ms.
The careful design of the clean pulse of the laser diode load level provides a low noise pulse current with a fast rise time while keeping the overshoot below 5%. LDP-3840B enables automated testing and characterization via the GPIB/IEEE interface.
For basic system integration, a trigger is used to control the pulse and initiate the corresponding measurement without the need for a command program. Like all ILX Lightwave® laser diode control instruments, the LDP-3840B features laser diode protection and safety features such as current limiting, output short circuits, AC line filters, and double-shielded transformers to help suppress laser damaging transients. For virtual instrument programming, LabVIEW® instrument drivers are available free of charge. LabVIEW® instrument drivers can be downloaded from the Literature and download options on this page. LDP-3840B power requirements are 100-120 VAC.
Instruments include:
LDP-3840B-120V Pulse current source
LPB-380 laser pulse board
CC380 3-ohm ribbon output cable
We offer a wide range of precision laser diode mounts for plug and play compatibility with our laser diode instruments.
Precise pulse control of laser diodes
At the heart of the LDP-3840B is a precision pulse current source that provides a net pulse with low overshoot and fast rise and fall times. The 3840B's low noise, transient suppression output is designed for laser diode load levels
